LCD01 - Graphic LCD for DCA75

LCD01 - Graphic LCD for DCA75

Peak Electronic Design Limited
15.30 (12.75 ex VAT)
In stock

Quantity:

LCD01 - Graphic LCD for DCA75 Information:

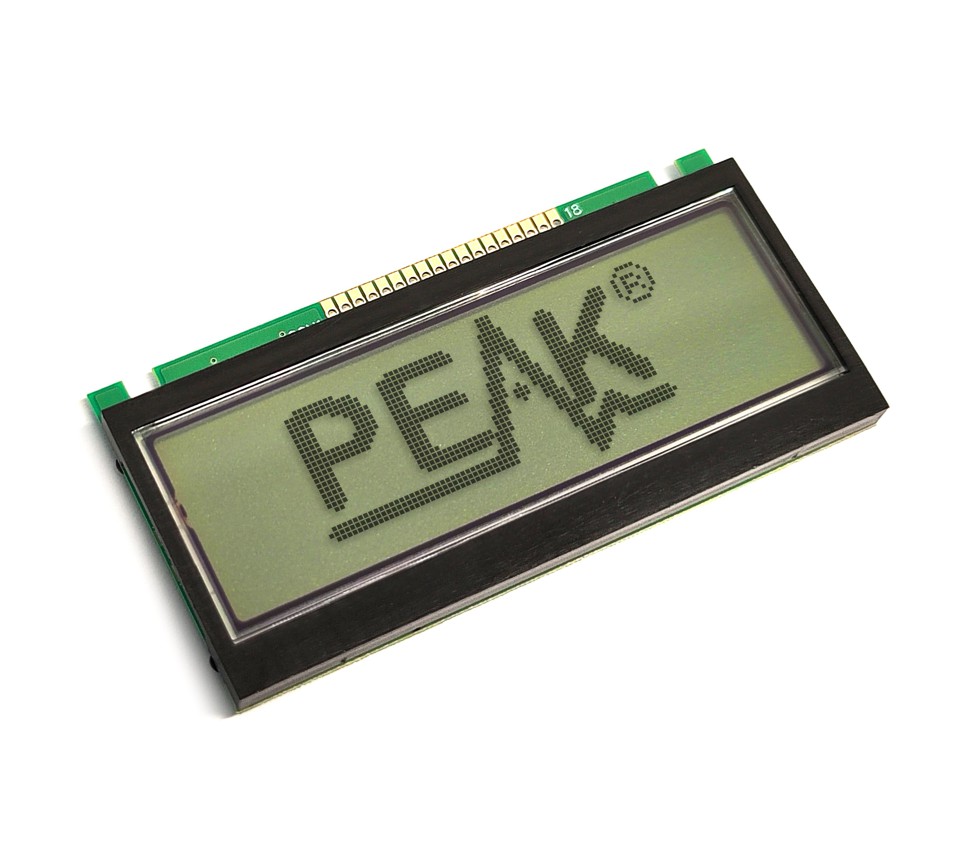

A high quality 122x32 pixel graphic STN LCD module as used on the DCA75. The module measures 59mm x 29.5mm, display area is 64mm x 15mm, two mounting centres are 50mm apart. Overall thickness including bezel is 3.8mm (4.8mm for chip locations).
You will need excellent soldering skills to fit this part.
* This LCD does include a bluey/white backlight but the backlight is only supported on DCA75 PCB revision 1.7 or later. If fitted to older revions then the backlight cannot be enabled. *
Includes very comprehensive fitting instructions, but please be aware it is quite tricky. We'll help you out if you have any problems.
