PCA23 - Peak Component Adapter for SOT-23

Suitable for: SOT23 (SOT-23) loose parts.
Pins: 3
Max. current: 100mA
Max. voltage: 50Vac, 75Vdc
SOT23 contact resistance: <10mOhms
Temperature range (C) -34C to 65C
Temperature range (F) -29F to 149F

PCA23 - Peak Component Adapter for SOT-23

Peak Electronic Design Limited
19.50 (16.25 ex VAT)

In stock

Quantity:

PCA23 - Peak Component Adapter for SOT-23 Information:

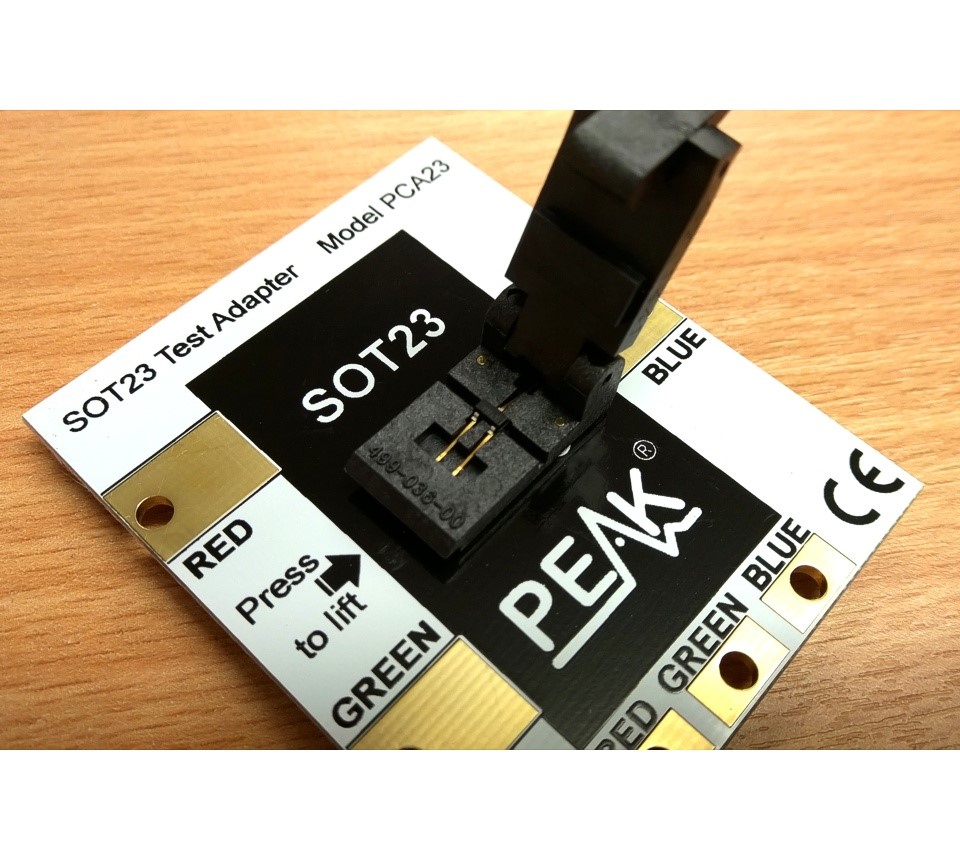

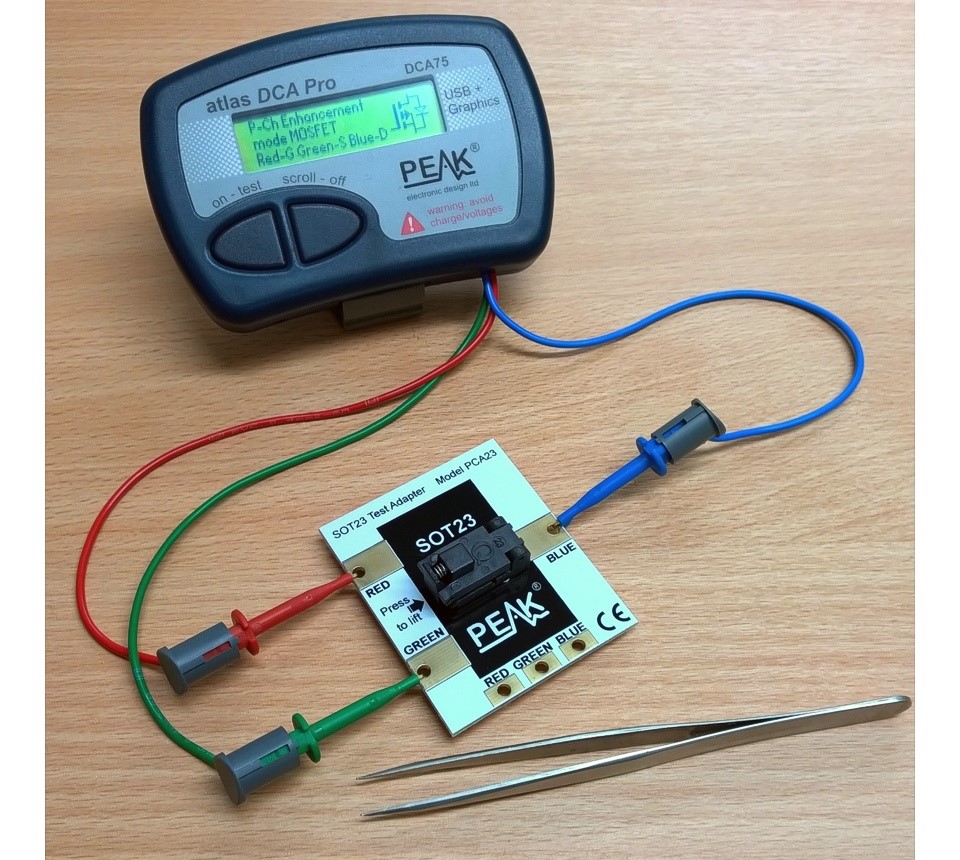

This beautiful SOT23 test adapter is designed to complement your DCA55, DCA75 or ZEN50 (or any other semiconductor tester). It's extremely easy to use thanks to the special spring-loaded SOT23 socket assembly. Your SOT23 part is gently and securely held against gold plated sprung contacts with a carefully controlled contact force.

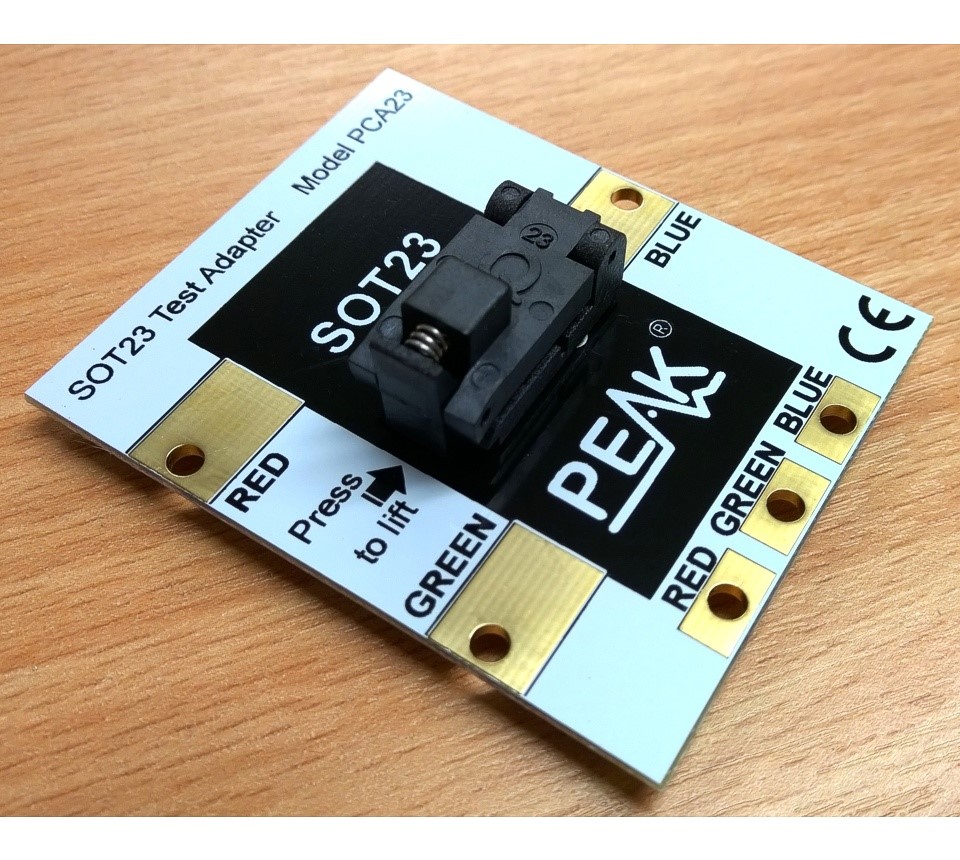

The adapter is designed to look like a giant SOT23 part, so it's easy to visualise the pinout of the part inside when using the test instrument.

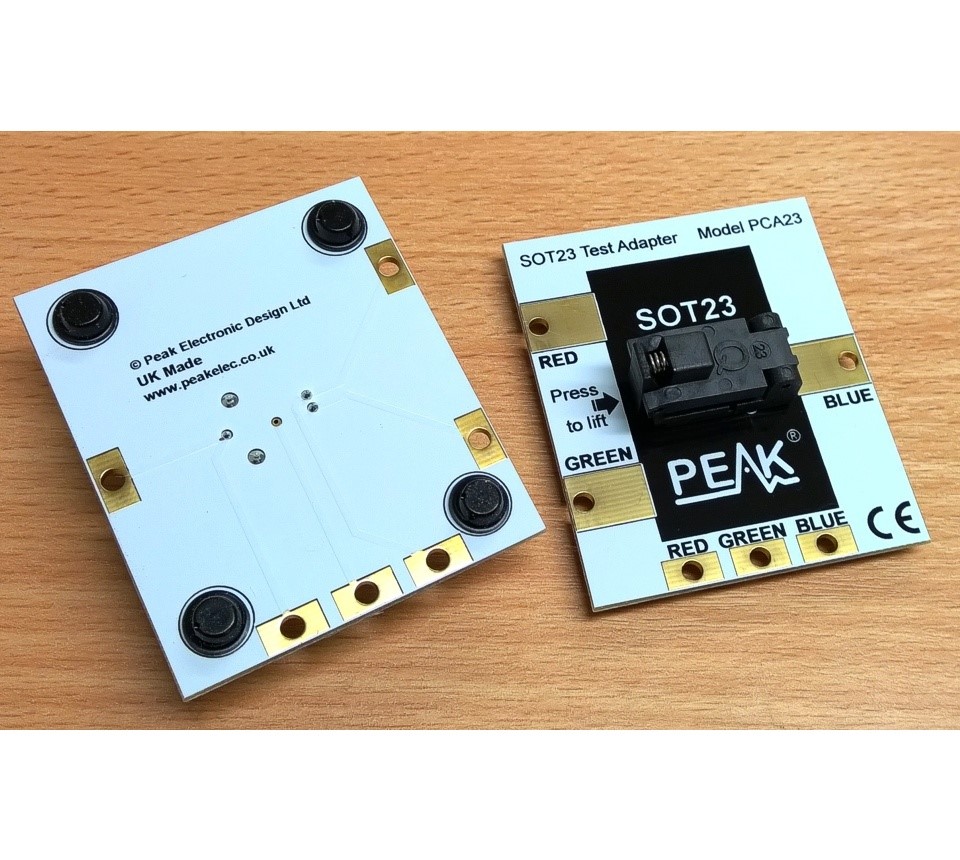

The unit is supported on 4 non-slip feet which also serves to keep the unit slightly raised from your work surface allowing for easier connections using micro-hooks or croc clips.
The large area gold plated pads are also great for multimeter prods.
Instrument and tweezers not included.
