RJA11 - Pair of RJ11-RJ45 Adapters

RJA11 - Pair of RJ11-RJ45 Adapters

Peak Electronic Design Limited
£15.00 (£12.50 ex VAT)
In stock

Quantity:

RJA11 - Pair of RJ11-RJ45 Adapters Information:

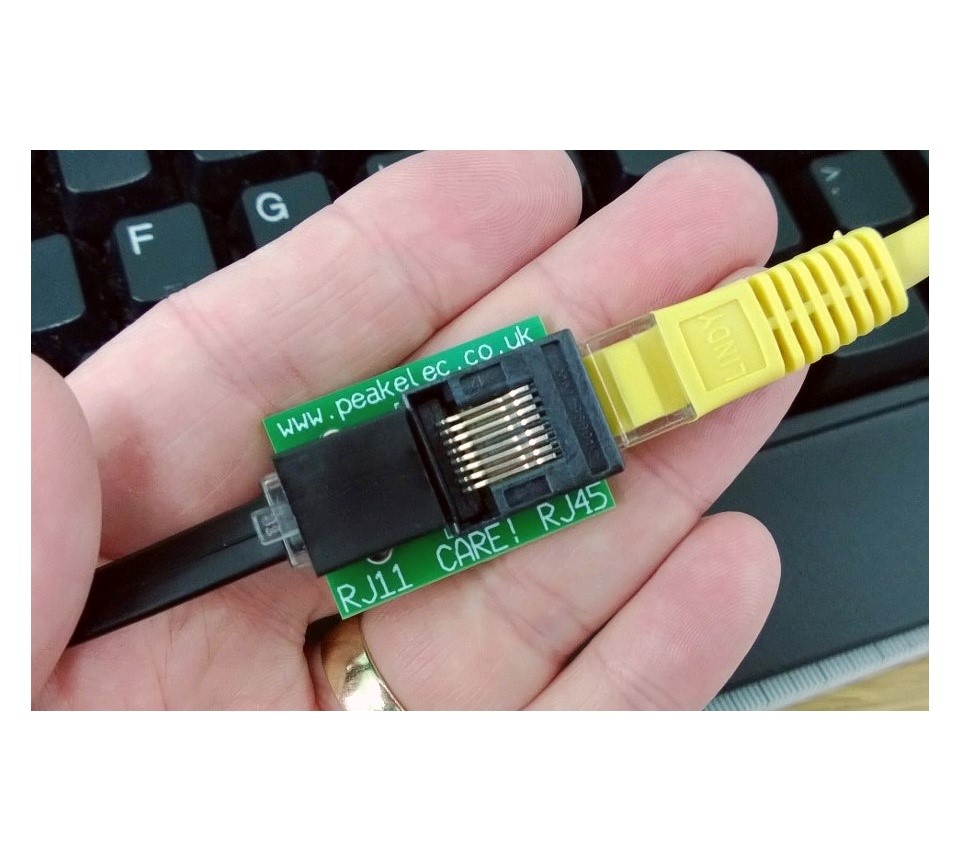

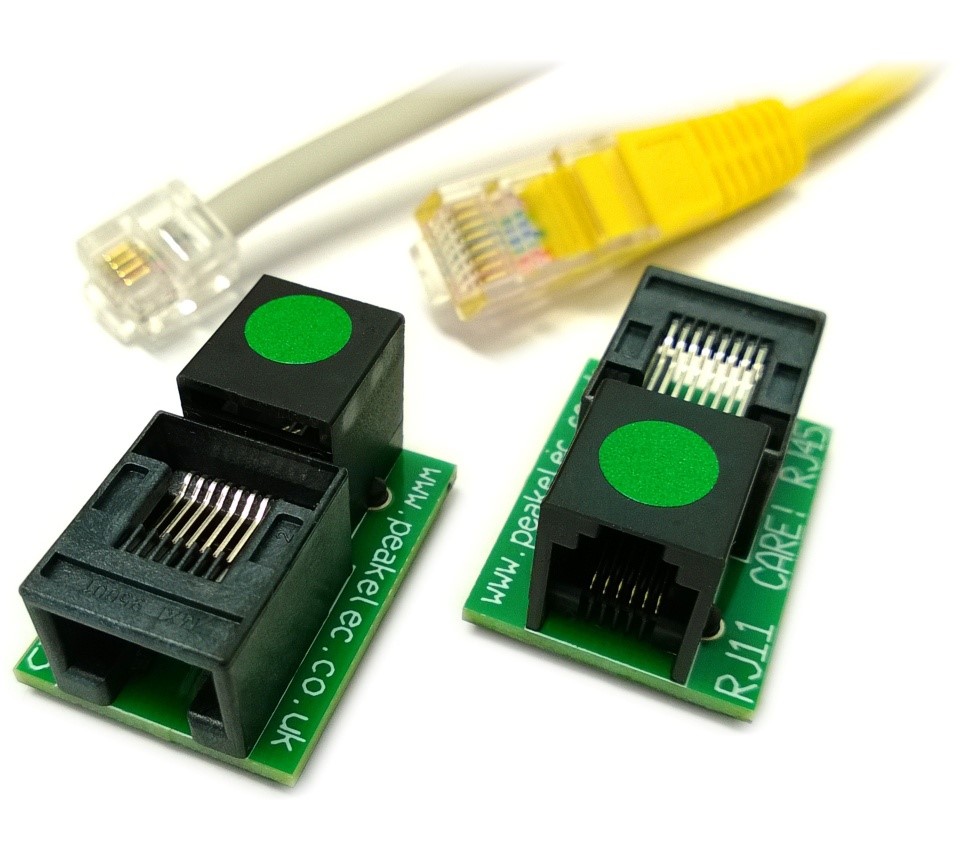

A stunning pair of very high quality adapters that allow you to test RJ11 style connectors with the Atlas IT Cable Analyser (Model UTP05).

Suitable for 2, 4 and 6 wire RJ11 cable types.

These are best used in conjunction with firmware 3.8 or later (earlier versions will work fine but won't be specifically displayed by name).

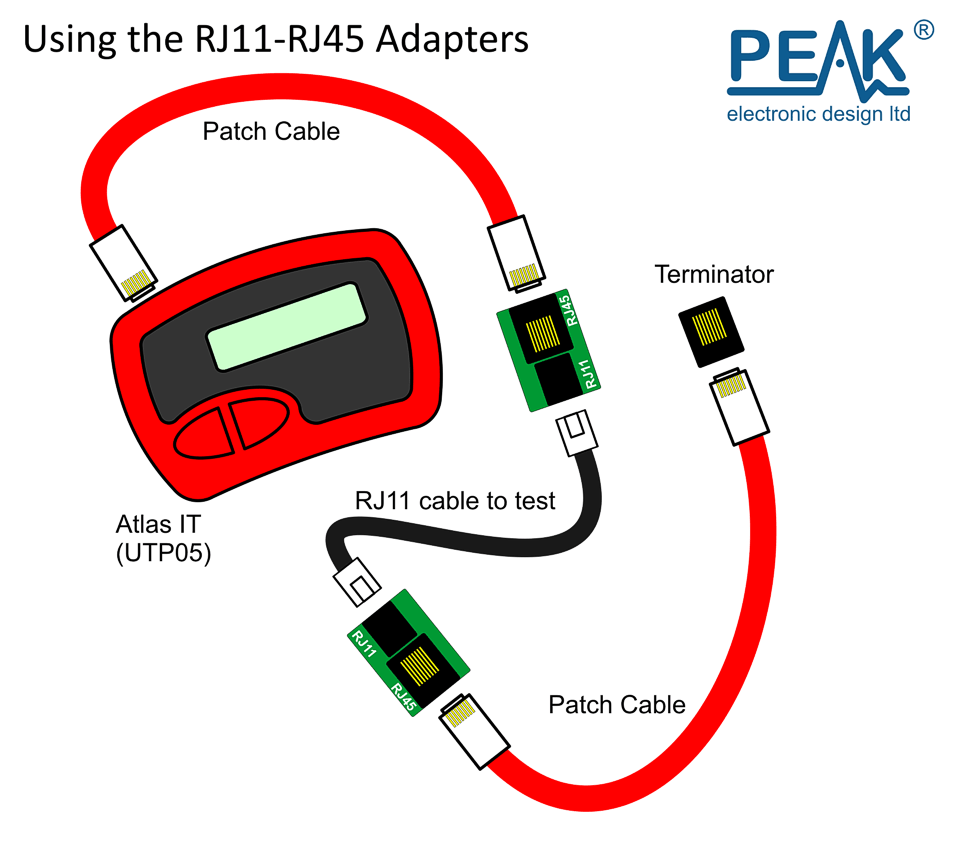

2 adapters are supplied so that both ends of an RJ11 type cable run can be converted to RJ45 for plugging into the Atlas IT and a terminator.

* WARNING * Do not attempt to plug an RJ11 plug into an RJ45 socket, although it may seem to fit, you will damage the contacts in the socket. This adapter set is designed to help you avoid breaking the RJ45 socket in that way.
