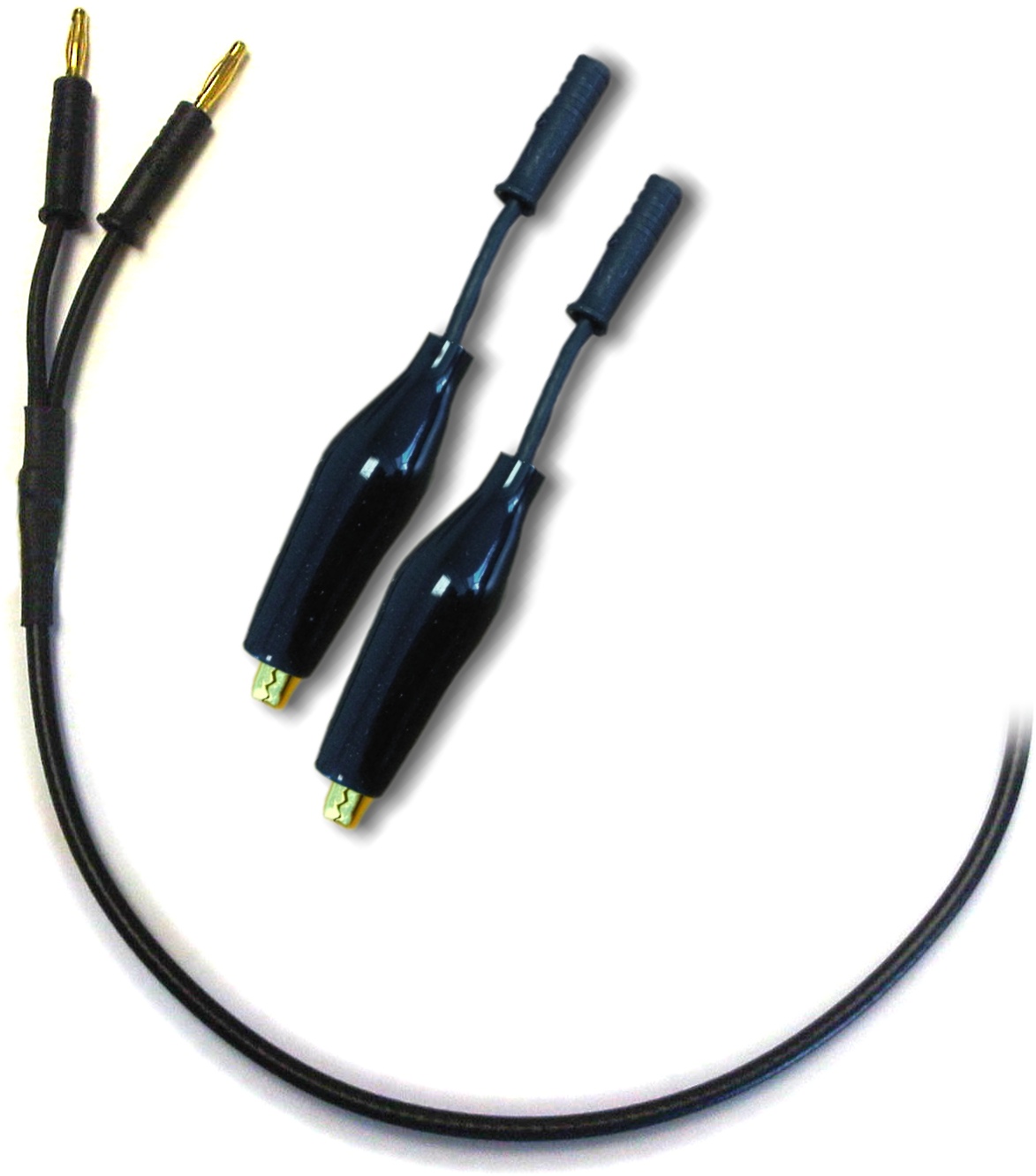

Title Replacement ESR Lead Set with 2mm connectors (Part number ELSM)

EAN 0712201377705

Catalogue copy High quality replacement lead set for the Atlas ESR Capacitance and ESR Meter (ESR60/70).

Key Features

  • Only for use with Atlas ESR60/70 firmware 4.1 or later.
  • Terminated with 2mm gold plated plugs.
  • Long length.
  • Supplied with pair of compatible gold plated croc clips with 2mm sockets.
  • Compatible with other 2mm industry standard accessories.
  • Gold plated to ensure good contact conductivity and long life.

Specification Summary
Main lead length (including plugs) approx 460mm (18")
Crocs lead length (including crocs and sockets) approx 80mm (3.1")

Photography (click to enlarge)

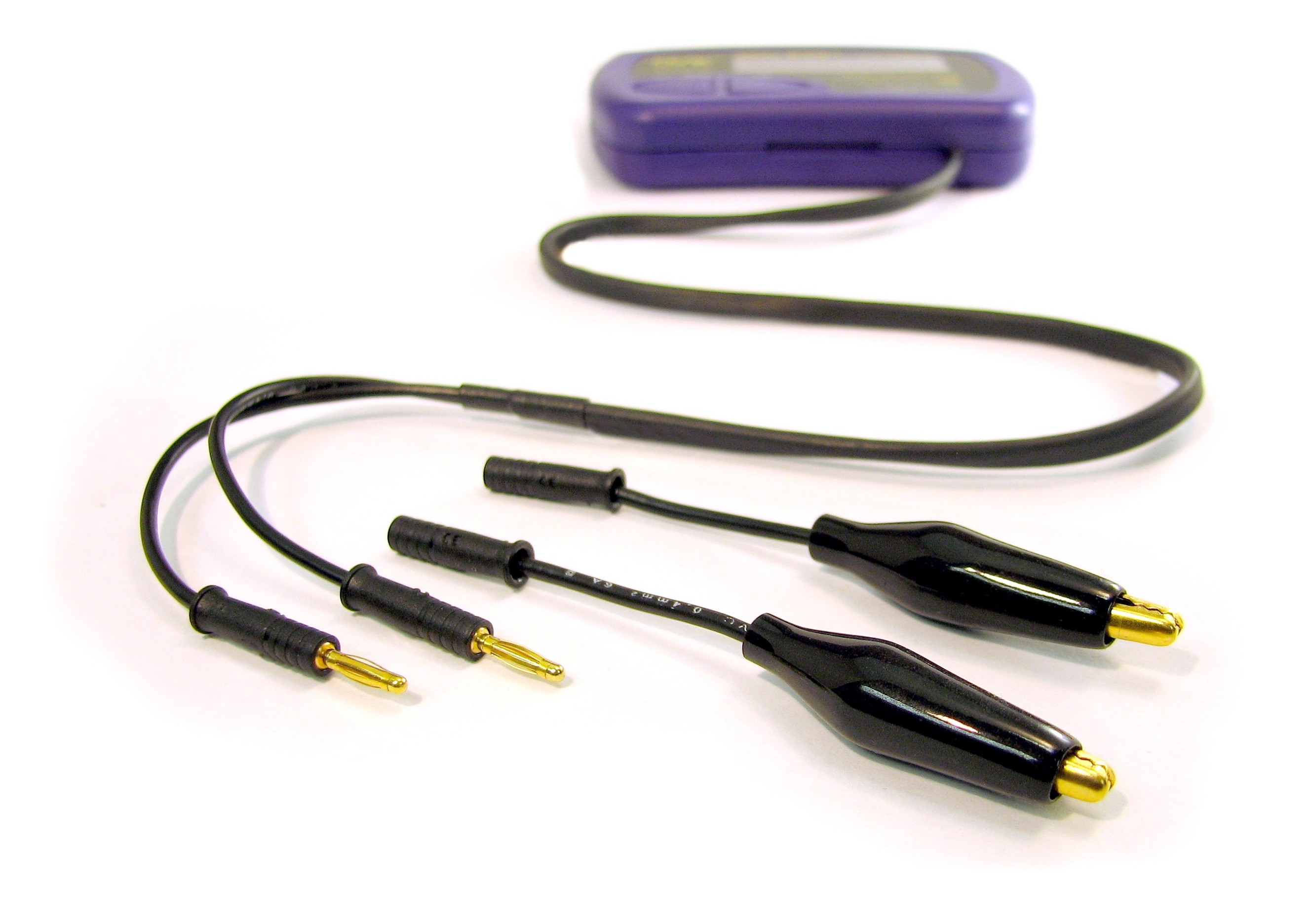

Lead set fitted to Atlas ESR (not included)

Other Downloads

Dimensions per product (excluding leads) 125 x 20 x 10 mm (4.9" x 0.8" x 0.4")
Dimensions per product (packaged) 150 x 90 x 20 mm (5.9" x 3.5" x 0.8")

Weight per product (nett) 0.010kg (0.4oz)
Weight per product (packaged inc docs) 0.020kg (0.7oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 9020 00 GB

Fundamental Materials Plastic and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS

Keywords peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, ESR60, ESR70, Atlas ESR, ESR, ESR meter, capacitance meter, capacitor meter, low resistance meter, croc clips, crocodile clips, crocs, alligator, gator clips, croc probes, crocodile probes, crocodile clips, alligator probes.

Related products ESR60, ESR70, ESRLHP2, CRC01EM, ATC55, ATC01, GP23A
