| GP23A Reseller
Resources |
| Updated 15/03/2025 |
|
| Title |
Replacement battery for Atlas DCA,
LCR, ESR and Atlas IT. 12V MN21 equiv. (Part number GP23A) |
| |
|
| UPC |
850061273291 |
| |
|
| Catalogue copy |
High quality alkaline 12V battery
for most of the Peak Atlas family of instruments.
Key Features
- Highly leak resistant.
- High capacity alkaline chemistry.
- Ideal for many of the Peak Atlas instruments.
- Long shelf life, ideal for spares.
- Suitable for many applications including alarm remotes etc.
- Direct replacement for the Duracell MN21.
|
| |
|
| Specification Summary |
| Voltage |
12V typ |
| Capacity |
55mAh typ |
| Chemistry |
Alkaline (Manganese Dioxide) |
| Dimensions |
10.0dia x 28.0mm (0.4" x 1.1") |
| Equivalents |
MN21, GP23, GP23AE, 23A, V23GA |
| Shelf Life |
Not less than 95% of service life for 1 year
storage at 20°C;
Not less than 85% of service life for 3 year
storage at 20°C |
|
| |
|

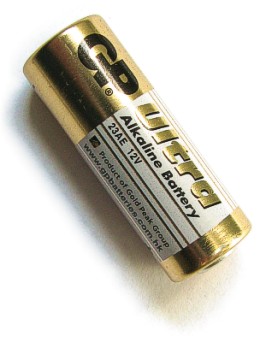

| Photography (click to enlarge) |
 |
 |
 |
|
| |
|
| Other Downloads |
gp23a_datasheet.pdf |
| |
|
| Dimensions per product |
10.0dia x 28.0mm (0.4" x
1.1") |
| Dimensions per product
(packaged) |
10.0dia x 28.0mm (0.4" x
1.1") |
| |
|
| Weight per product (nett) |
0.008kg (0.3oz) |
| Weight per product (packaged inc
docs) |
0.015kg (0.5oz) |
| |
|
| Bulk order multiple |
20, 50, 100 |
| |
|
| Harmonisation / Commodity /
Tariff Code |
8506 1011 CN |
| |
|
| Fundamental Materials |
Plastic and metal. |
| |
|
| Country of manufacture |
China |
| |
|
| Certification |
CE, WEEE, ROHS |
| |
|
| Keywords |
Atlas battery, GP23, MN21, GP23A,
GP23AE, 12v battery, tester battery, DCA battery, LCR battery, ESR
battery, IT battery, UTP battery. |
| |
|
| Related products |
DCA55, ESR60,
ESR70, UTP05, LCR40,
LCR45, ATPK2, ATPK3 |
