PCB45 - LCR45 Component Impedance Meter PCB Assembly

Analyser type: LCR and component impedance.
Component types: Auto/Manual for L,C & R
Measurement types: Inductance, Capacitance and Resistance.
Other measurements: Complex impedance/admittance.
More measurements: Magnitude and Phase of impedance.
Inductance range: 0uH to 2H.
Capacitance range: 0pF to 10000uF.
Resistance range: 0R to 2MR.
Test frequency: Auto and manual: DC, 1kHz, 15kHz, 200kHz.
Display type: Alphanumeric LCD (not backlit).
Measurement scheme: Continuous (with optional hold).
Battery: GP23 (12V 55mAH type), ~700 ops.

PCB45 - LCR45 Component Impedance Meter PCB Assembly

Peak Electronic Design Limited
95.70 (79.75 ex VAT)
In stock

Quantity:

Certificate of Calibration

PCB45 - LCR45 Component Impedance Meter PCB Assembly Information:

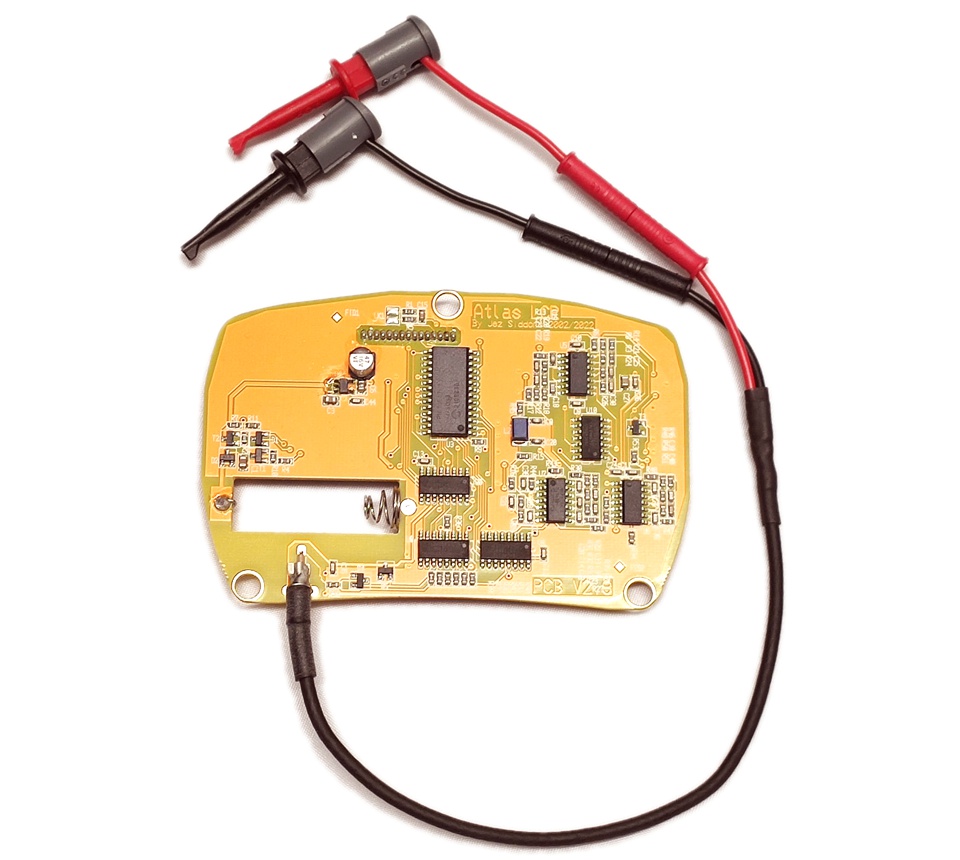

This is the PCB assembly for the LCR45. It includes the PCB assembly, fitted display, battery terminals and test lead assembly. Programmed and calibrated as usual.

  • Fluid measurements of L, C and R (continuous readings with selectable hold function).
  • Fine resolution for improved performance at low inductance/capacitance/resistance.
  • Auto and Manual component type.
  • Auto and Manual test frequency.
  • Frequencies: DC, 1kHz, 15kHz and 200kHz.
  • Display of component values, complex impedance, complex admittance and magnitude/phase.
  • Please avoid charge/voltage on the probes.

Includes:
  • LCR45 Passive Component Impedance Meter.
  • 2mm plugs and sockets and removeable hook probes.

Technical Specifications


Resistance: 0.0 Ohm to 2 MegOhms, resolution typically 0.2 Ohms, accuracy typically ±1.0% ±0.6 Ohms
Inductance: 0.0uH to 2H, resolution typically 0.2uH, accuracy typically ±1.5% ±0.6uH
Capacitance: 0.0pF to 10000uF, resolution typically 0.2pF, accuracy typically ±1.5% ±0.6pF
Impedance: Typically ±1.5% ±10LSD
Magnitude: Typically ±1.5% ±10LSD
Phase: Typically ±5°
Sample rate: 1.5Hz ±0.5Hz.
Open circuit test voltage: ±1.05V
Short circuit test current: ±3.25mA
Test frequencies: DC, 1kHz, 14.925kHz and 200kHz, ±0.5%
Sine purity: -60dB 3rd harmonic typical
Operating temperature range: 15°C to 35°C (60°F to 95°F)
Battery type: GP23A / V23A / L1028 / MN21 (12V 55mAH type not included)
Battery life: Typically ~700 operations at <1 minute per operation
Display type: Alphanumeric LCD (not backlit)

Accuracies shown for 100uH-100mH, 200pF-500nF and 10 Ohms to 1MOhms.

FAQs


Q. Can I measure the impedance of speakers?
A. Yes, set the LCR45 to manual inductance mode and a fixed frequency of 1kHz or 15kHz. You can see the inductance, resistance, total impedance and phase of the impedance.

Q. When testing speakers at 15kHz, I can hear a low frequency buzz from the speaker, not the 15kHz I've selected. Why?
A. The LCR45 uses "bursts" of test signals, it is these "bursts" that you can hear. During each burst, the LCR45 is using the test frequency you've selected.

Q. Can I measure arbitrary impedances rather than just components?
A. Yes. If the LCR45 has difficulty selecting the best mode and frequency then you can switch to a manual mode and test frequency to display the detailed impedance.

Q. Can I use this in-circuit?
A. No, it is not recommended for in-circuit use. Other component interactions can cause misleading results and damage may result from unexpected charged devices.

Q. Is the LCR45 protected against charge on the probes?
A. The LCR45 is protected against small charges on the probes (<5V on 22000uF, <25V on 10uF). Like all LCR meters, it is vital that you avoid charges on the probes.

Q. Is the LCR45 better than the LCR40 for low inductances?
A. Yes. The use of a finer resolution ADC provides significantly finer measurements when measuring below 1µH.

Q. Is the LCR45 calibrated?
A. Yes. Every LCR45 is individually calibrated to standards that are traceable to international standards.

Q. Why does the calibration certificate cost extra if all LCR45s are calibrated anyway?
A. The calibration certificate includes the results of a manual calibration verification process with results from 25 known standard values.

Q. The display shows a "Calibration due" date of xx/xxxx.
A. The "Calibration Due Date" is purely a recommendation. Nothing bad happens after that date. New LCR instruments will have a date shown that is approximately 12-18 months in the future. The generally accepted recalibration interval for this type of instrument is 12 months. The LCR40/45 can only be re-calibrated here at Peak which uses a very comprehensive 24 station rig, the calibration-due date is then set to 12 months from that moment. It is not mandatory to have a re-calibration.

Q. What probes are included?
A. Our universal gold plated hook probes (removable).

Downloads


Data Sheet (EN)
User Guide (EN)
User Guide (DE)
User Guide (IT)
User Guide (FR)

Optional certificate of calibration includes results of manual verification tests. Instrument is calibrated the same way regardless of whether you require the certificate.

Please note that the product colour/appearance may vary.
Current firmware: 1.3
