SCR100 - Atlas SCR Thyristor and Triac Analyser

Analyser type: Triacs and Thyristors (SCRs).
Pinout detection: Automatic.
Triac/Thyristor detection: Automatic.
Gate current range: Auto: 100uA to 90mA
Load test current: 100mA (typ).
Battery type: Single AAA (supplied). Life typically 1600 ops.
Display type: Alphanumeric LCD (with backlight).

SCR100 - Atlas SCR Thyristor and Triac Analyser

Peak Electronic Design Limited
138.00 (115.00 ex VAT)
In stock


SCR100 - Atlas SCR Thyristor and Triac Analyser Information:

Thyristors and Triacs need special test conditions to analyse effectively - that's where the new Atlas SCR comes in.
The SCR100 can apply gate test currents from 100µA up to 90mA (with test load currents of up to 100mA) so it's not limited to sensitive parts.
It will automatically identify the type of part (Thyristor or Triac), identify all three leads and also categorise the gate sensitivity.
This new version takes a standard Alkaline AAA battery and features a backlit alphanumeric LCD.

  • SCR100 Triac and Thyristor Analyser instrument.
  • Comprehensive illustrated user guide.
  • Fitted universal hook probes.
  • AAA Alkaline cell.

Technical Specifications

Unique Instrument
A totally unique instrument, offering fast and reliable analysis of most thyristor and triac devices.

Triacs and thyristors (SCRs) often require test currents that are not available from existing test equipment. The Atlas SCR though can generate gate test currents from 100µA up to 90mA with load test currents up to 100mA to enable the safe and reliable testing of these tricky parts.

Connect Any Way Round

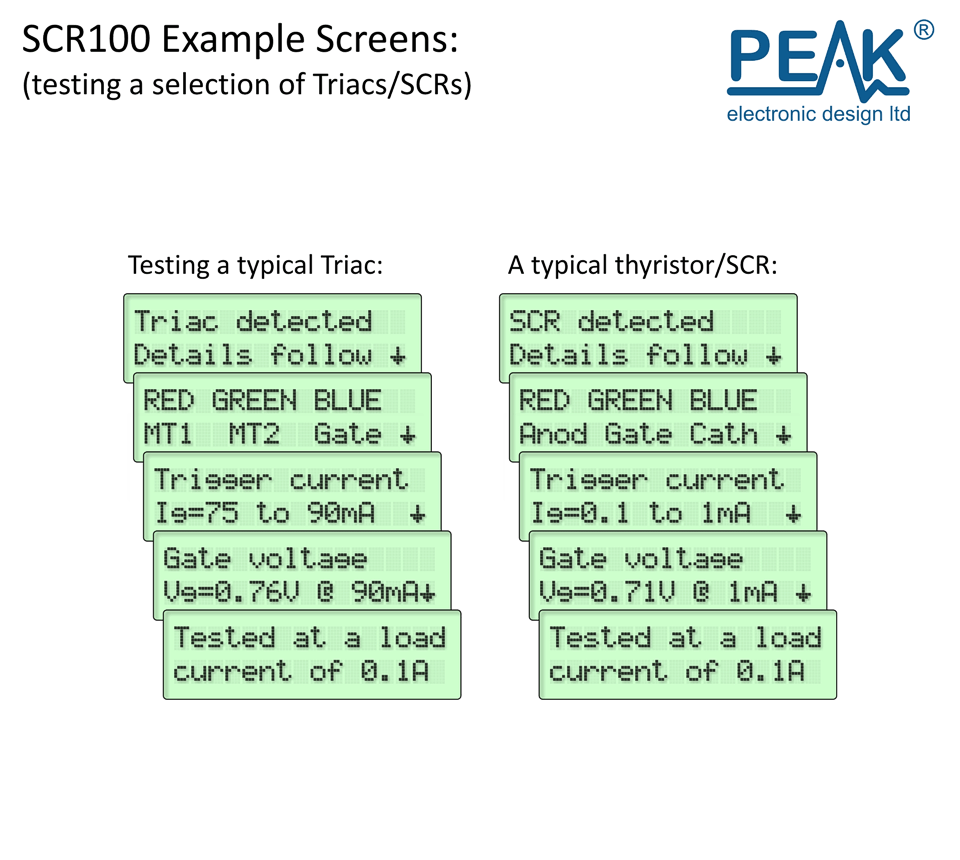

Not only will the Atlas SCR generate the currents necessary to test most thyristors and triacs, it will also identify the type of part under test, identify all three leads, categorise the gate sensitivity and measure the gate voltage.

Efficient Power
Test voltages of 12V are generated (at up to 100mA) from the single AAA cell (alkaline cell included). Test conditions are maintained throughout the cell's life.

  • Automatic identification of component type (Thyristor or Triac).
  • Automatic lead identification (just connect any way round).
  • Categorisation of gate sensitivity (100µA, 1mA, 10mA, 25mA, 35mA, 50mA, 60mA, 75mA, 90mA).
  • Measures gate voltage during trigger.
  • Load test conditions of 12V and 100mA (regardless of battery condition).
  • Test pulse durations < 1.2ms minimises possibility of damage to sensitive parts.
  • Fault identification (shorted junctions, faulty operation, etc).
  • New 100% SMD construction ensures small size and great reliability.
  • Clear and user-friendly scrollable display.

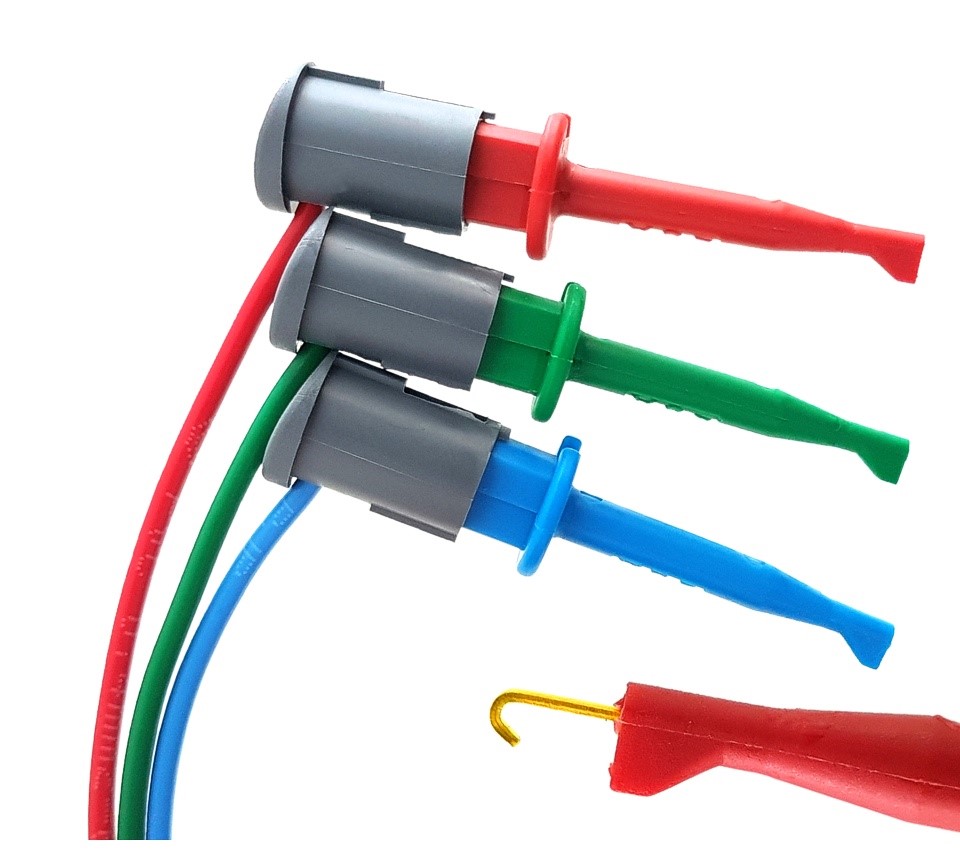

  • Supplied with new Premium micro-hook probes.
  • Accessories available include carry case and batteries.


Data Sheet (EN)
User Guide (EN)
User Guide (DE)
User Guide (IT)
User Guide (FR)

Please note that the product colour/appearance may vary.
Current firmware: 4.0
