Title Atlas Pro Pack - Semiconductor and Passive Component Analyser Pack (Models DCA75 and LCR45)

EAN 0700153222907

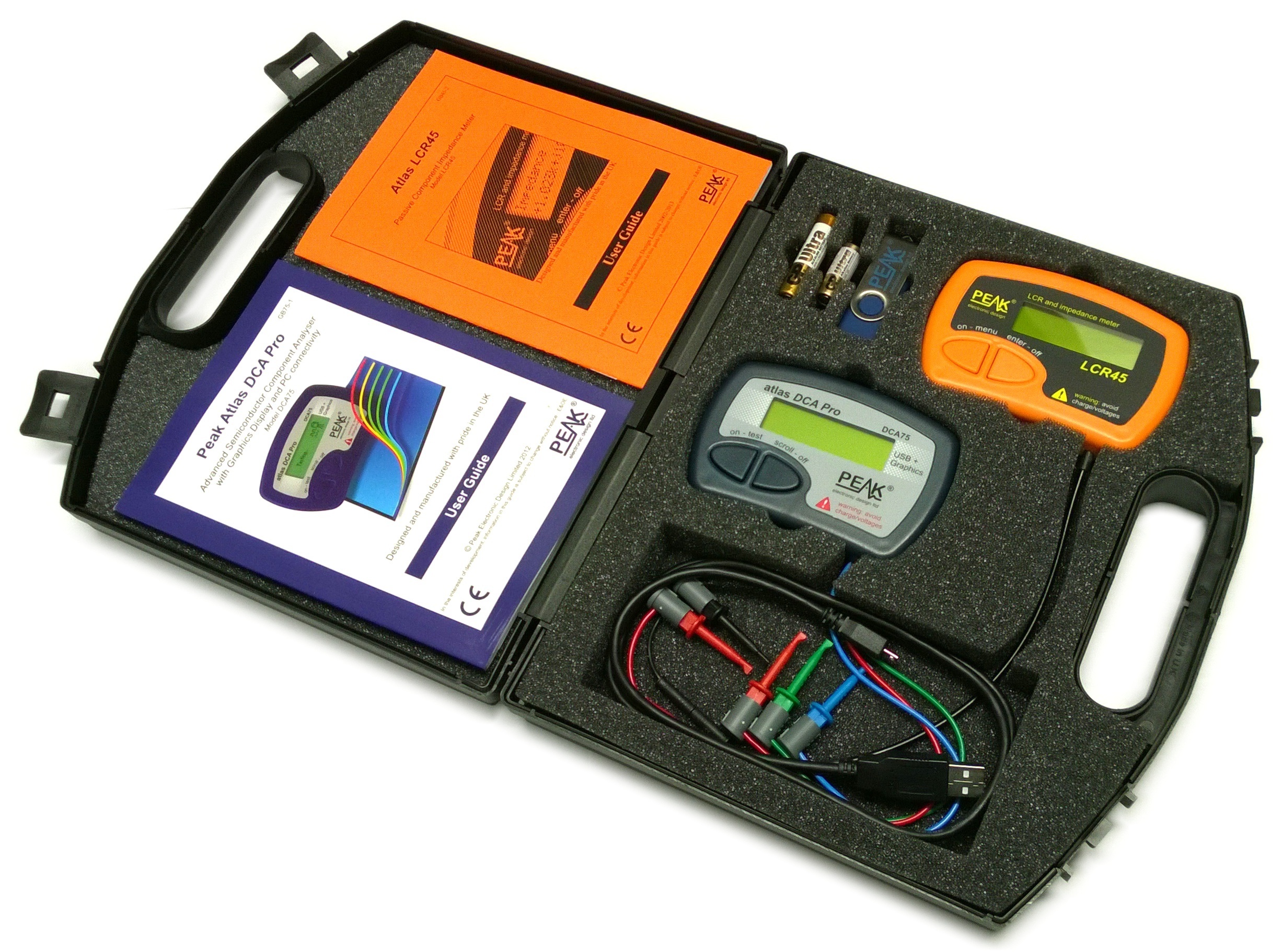

Catalogue copy A fantastic dual instrument pack featuring the Atlas DCA Pro Advanced Semiconductor Analyser (model DCA75) and the Atlas LCR Impedance Meter (model LCR45). Housed in a robust padded case, complete with spare batteries, user guides and space for accessories.

DCA75:

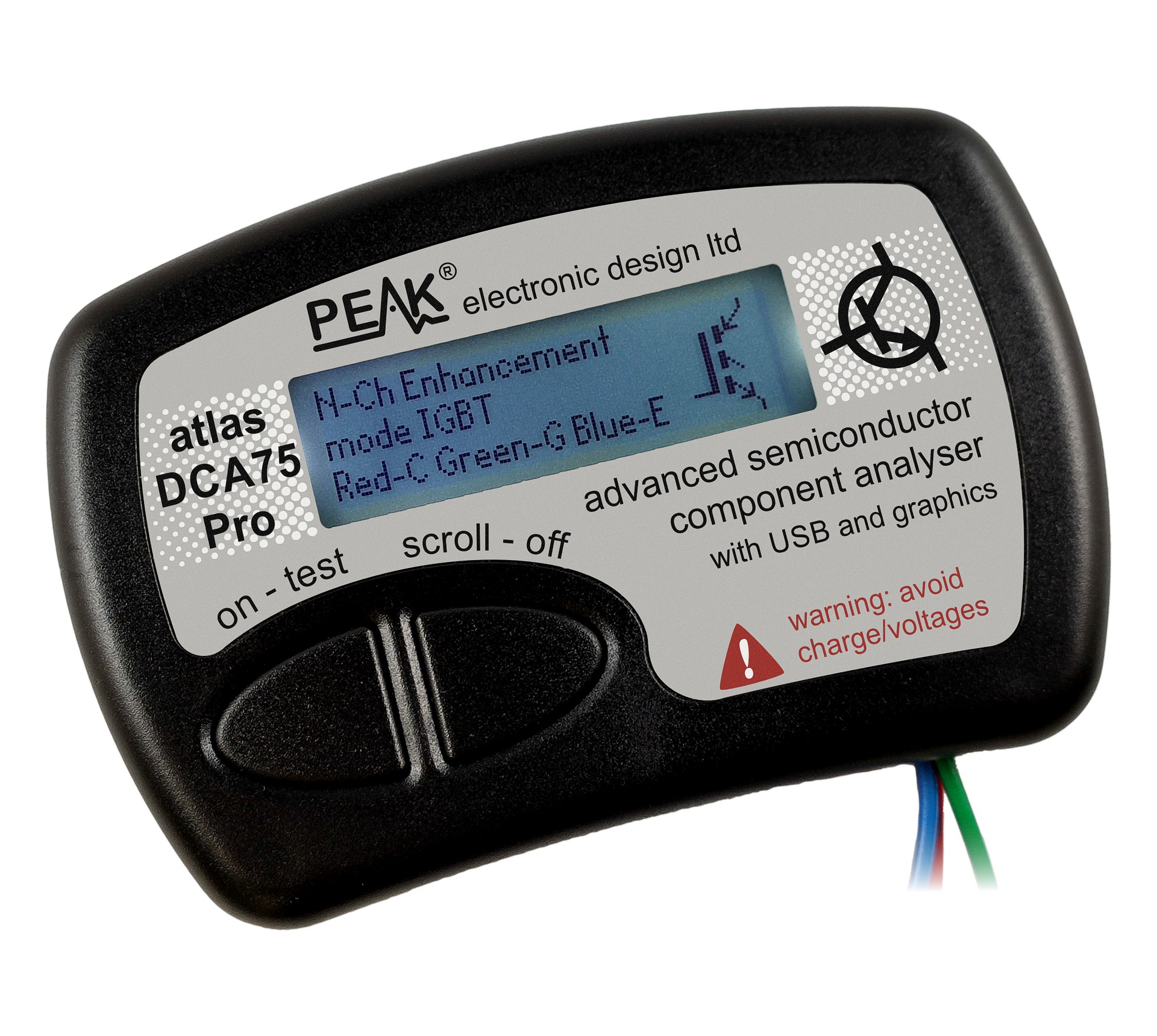

Building on the continued success of Peak's existing component identification and analysis instruments, the DCA Pro brings an array of exciting new features for the hobbyist and professional alike.

Key Features
The DCA Pro is an advanced new design that features a graphics display, USB communications, PC Software and an enhanced component identification library.

- Automatic component type identification.
- Automatic pinout identification (connect any way round).
- The DCA Pro supports all the components that the popular Peak Atlas DCA55 supports, but adds plenty more. Components supported include:
- Transistors (including Darlingtons), Silicon and Germanium types. Measures gain, Vbe and leakage.
- MOSFETs, enhancement mode and depletion mode types. Measure on-threshold (at 5mA) and approx transconductance (for span of 3mA-5mA).
- JFETs, including normally off SiC types. Measures pinch-off voltage (at 1uA) and approx transconductance (for span of 3mA-5mA).
- IGBTs (insulated gate bipolar transistors). Measures on-threshold (at 5mA).
- Diodes and Diode networks.
- LEDs and bicolour LEDs (2 lead and 3 lead types).
- Zener Diodes with measurement of zener voltage up to 9V at 5mA.
- Voltage regulators (measures regulation voltage, drop-out voltage, quiescent current).
- Triacs and Thyristors that require less than 10mA of gate current and holding current.

Stand-alone or with a PC
The instrument can be used stand-alone or connected to a PC. Either way, the DCA Pro will automatically identify the component type, identify the pinout and also measure a range of component parameters such as transistor gain, leakage, MOSFET and IGBT threshold voltages, pn characteristics and much more.

Curve Tracing
When connected to a PC using the supplied USB cable, a range of low current curve-tracing functions can be performed. Various graph types are available, with more to follow:
- Bipolar transistor output characteristics, IC vs VCE.
- Bipolar transistor gain characteristics, HFE vs VCE.
- Bipolar transistor gain characteristics, HFE vs IC.
- MOSFET and IGBT output function, ID vs VDS.
- MOSFET and IGBT transfer function, ID vs VGS.
- JFET output function, ID vs VDS.
- JFET transfer function, ID vs VGS.
- Voltage regulator, VOUT vs VIN.
- Voltage regulator, IQ vs VIN.
- PN junction I/V curves, forward and reverse options (for Zener diodes).

Curve tracing is performed using test parameters in the range of +/-12V or +/-12mA. All curve-tracing data can be instantly pasted into Excel© for further graphing and analysis. PC Software is included with the DCA Pro on a Peak USB memory stick. Software designed for Windows XP, Vista, Windows 7 and Windows 8 (all 32 or 64 bit).



LCR45:

A great handheld LCR analyser that can measure the value of your passive component (inductor, capacitor or resistor) and also measure the detailed impedance in a number of modes. The LCR45 offers enhanced measurement resolution (better than 0.1uH!) whilst also giving you continuous fluid measurements. Additionally, the test frequencies of DC, 1kHz, 15kHz and 200kHz can be set to automatic or manual modes. Supplied with removable gold plated hook probes, battery and user guide. Compatible with standard 2mm test connectors. Not designed for in-circuit use.

Key Features

  • Automatic or manual component type selection: Inductor, Capacitor or Resistor.
  • Automatic or manual test frequency selection: DC, 1kHz, 15kHz and 200kHz.
  • Inductance from 0.1uH to 10H.
  • Capacitance from 0.1pF to 10,000uF.
  • Resistance from 0.1Ohm to 2MOhm.
  • Inductance measurement also shows DC winding resistance.
  • Display of "Component type and values", "Complex Impedance", "Magnitude/Phase" and "Admittance".
  • Test frequency displayed for all measurements.
  • Typical accuracy of 1.5% for inductors and capacitors (see spec table for details).
  • Typical accuracy of 1% for resistors.
  • Test lead complete with gold plated 2mm plugs and sockets.
  • Supplied with removable gold plated hook probes.



Specification Summary at 20°C (68°F) unless otherwise specified. DCA75:

Parameter

Min

Typ

Max

Note

Bipolar Transistors









Measurable current gain (HFE) range

2



32000

2

HFE accuracy (HFE<2000)

±3% ±5 HFE

2,8

HFE test voltage (VCEO)

3.0V



9.0V

2

HFE collector test current

4.75mA

5.00mA

5.25mA



Base current for Vbe measurement

3.0mA

4.0mA

5.0mA



Vbe accuracy

±1% ±0.006V

8

Vbe resolution



3.0mV

6.0mV



Vbe for Darlington identification

0.95V

1.00V

1.80V

3

Vbe for Darlington (shunted types)

0.75V

0.80V

1.80V

4

Vbe threshold for germanium



0.55V





Acceptable Vbe





1.80V



Base-emitter shunt threshold

50kW

60kW

70kW



Acceptable collector leakage





1.5mA

6

Leakage current accuracy

±2% ±0.02mA



MOSFETs/IGBTs









Enhancement mode VGS(ON) range

0.0V



10.0V

5

Depletion mode VGS(ON) range

-5.0V



0.0V

5

VGS(ON) accuracy

±2% ±0.01V

5

Drain current at VGS(ON)

4.75mA

5.00mA

5.25mA



Drain-Source voltage at VGS(ON)

3.5V



9.0V

5

Acceptable gate-source resistance

8kW







IGBT collector saturation threshold



0.40V



9

JFETs









Pinch-off VGS(OFF) range

-10.0V



2.5V



Pinch-off drain-source current

0.5μA

1.0μA

2.0μA



Turn-on VGS(ON) range

-9.0V



2.5V



Turn-on drain-source test current

4.75mA

5.00mA

5.25mA



VGS accuracy

±2% ±0.01V



Transconductance (gfs) range





99mA/V



gfs test drain current span

3.0mA to 5.0mA



gfs accuracy (<20mA/V)

±5% ±2mA/V



gfs accuracy (>20mA/V)

±10% ±5mA/V





Parameter

Min

Typ

Max

Note

Thyristors and Triacs









Gate trigger test current

8.0mA

10.0mA

12.0mA

7

Load hold test current



10.0mA

15.0mA



Diodes and LEDs









Diode forward test current

4.75mA

5.00mA

5.25mA



Diode forward voltage accuracy

±1% ±0.006V



Acceptable Vf for a diode @ 5mA

0.15V







Vf for LED identification

1.50V



4.00V



Zener Diodes









Zener voltage range at 5mA

1.8V



9.0V



Zener voltage range below 5mA



9.0V

12.0V



Zener diode test current

0.50mA

5.00mA

5.25mA



Voltage Regulators









Input test voltage range (IQ<3.0mA)

1.10V



10.0V



Input test voltage range (IQ<5.0mA)





8.0V



Quiescent current range (IQ)

0.00mA



5.00mA



Quiescent current accuracy

±2% ±0.02mA



Dropout voltage range (VDO)

0.00V



3.00V



Dropout voltage accuracy

±2% ±0.02V



Output voltage accuracy

±1% ±0.006V



Load test current

0.13mA



1.25mA



General Parameters









Peak test current into S/C

-15.5mA



15.5mA

1

Peak test voltage across O/C

-13.5V



13.5V

1

Short circuit threshold

5W

10W

20W

1

Battery type

1 x AAA, LR03, MN2400, Alkaline 1.5V



Battery voltage range

1.00V

1.50V

1.60V



Battery warning threshold



1.00V





USB current consumption

500mA peak active. ≤2mA sleep.



Dimensions (body)

103 x 70 x 20 mm





4.1" x 2.8" x 0.8"



Operating temperature range

10°C to 40°C

10



50°F to 104°F



1.         Between any pair of test clips.
2.         Collector current of 5.0mA. Gain accuracy valid for gains less than 2000.
3.         Resistance across reverse biased base-emitter > 60kW.
4.         Resistance across reverse biased base-emitter < 60kW.
5.         Load current of 5.0mA.
6.         Collector-emitter voltage of 10.0V.
7.         Thyristor quadrant I, Triac quadrants I and III.
8.         BJT with no shunt resistors.
9.         Load current typically 10.0mA
10.       Subject to acceptable LCD visibility.


LCR45:

Parameter

Min

Typ

Max

Note

Resistance

range

0Ω



2MΩ



resolution

0.1 Ω

0.2Ω





accuracy

Typically ±1.0% ±0.6 Ω

1,2,6

Capacitance

range

0pF



10,000µF



resolution

0.1pF

0.2pF





accuracy

 Typically ±1.5% ±0.6pF

1,2,5

Inductance

range

0µH



10H



resolution

0.1µH

0.2µH





accuracy

 Typically ±1.5% ±0.6µH

1,2,4

Passive

Component

Impedance

Re & Im

Typically ±1.5% ±10 LSD

4,5,6

Magnitude

Typically ±1.5% ±10 LSD

4,5,6

Phase

Typically ±5°

4,5,6

Measurement Sample Rate

0.5Hz

1.5Hz

2Hz



Peak test voltage (across O/C)

-1.05V



+1.05V



Peak test current (thru S/C)

-3.25mA



+3.25mA



Test frequency

accuracy

1kHz

Typically ±0.5%



14.9254kHz

7

200kHz



Sine purity

Typically -60dB 3rd harmonic



Operating temperature range

10°C



40°C

3



50°F



104°F



Battery operating voltage

8.5V



13V



Notes for table above:
1. Within 12 months of factory calibration. Please contact us if you require a full re-calibration and/or certification of traceable calibration.
2. Specified at temperatures between 15°C and 30°C (59°F and 86°F).
3. Subject to acceptable LCD visibility.
4. For inductances between 100µH and 100mH in fully auto mode.
5. For capacitances between 200pF and 500nF in fully auto mode.
6. For resistances between 10Ω and 1MΩ in fully auto mode.
7. For clarity, the 14.9254kHz test frequency is shown as 15kHz.

Photography (click to enlarge)


Other Downloads lcr45-user-guide-en.pdf dca75-user-guide-en.pdf
  lcr45-user-guide-de.pdf dca75-user-guide-de.pdf
  lcr45-user-guide-it.pdf dca75-user-guide-it.pdf
  lcr45-user-guide-fr.pdf dca75-user-guide-fr.pdf

  lcr45_datasheet_en.pdf dca75_datasheet_en.pdf
Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 268 x 225 x 55 mm (10.5" x 8.9" x 2.2")

Weight per product (nett) 0.800kg (1lb 12oz)
Weight per product (packaged inc docs) 0.887kg (1lb 15oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 8200 00 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS

Keywords peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, DCA Pro, DCA75, Curve Tracer, Advanced, Atlas, DCA55, DCA50, DCA50e, Atlas DCA, DCA, Semiconductor tester, semiconductor analyser, semiconductor analyzer, transistor tester, transistor analyser, transistor analyzer, component tester, component analyser, component analyzer, component identifier, semiconductor identifier, LCR45, Complex impedance, Impedance meter, Impedance, LCR40, Atlas LCR, LCR, LCR Bridge, LC Bridge, LC Meter, Passive component tester, Passive component analyser, Passive component analyzer, Passive component meter, inductor meter, inductance meter, inductor tester, capacitor meter, capacitance meter, capacitor tester, resistor meter, resistance meter, resistor tester, Atlas Pack, Atlas Star Pack, Atlas Pro Pack, Atlas Hobby Pack, ATPK2, ATPK3.
