LCR45 Reseller Resources

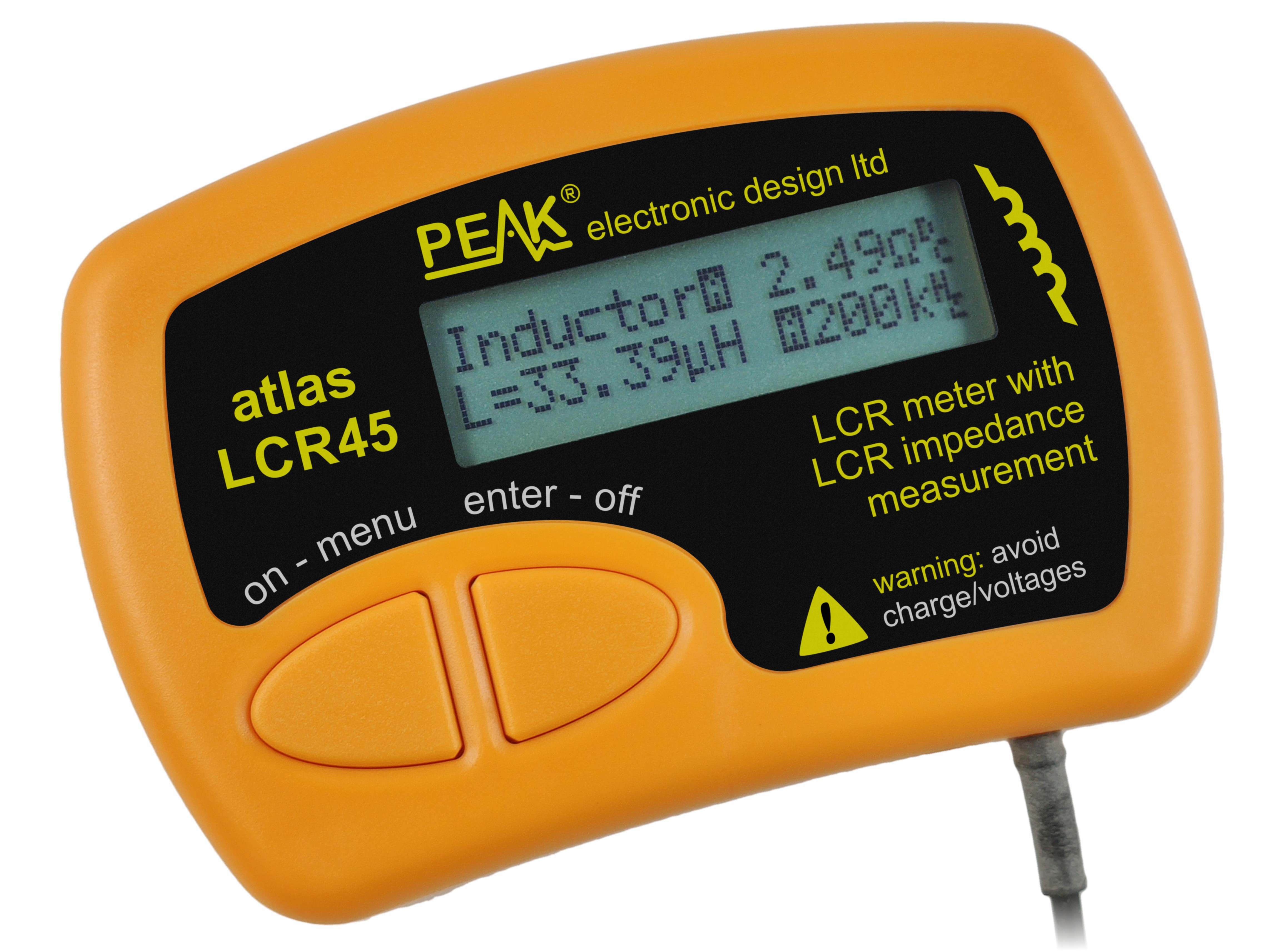

Title Atlas LCR45 - Passive Component Impedance Analyser (Model LCR45)

EAN 0700153222969

Catalogue copy A great handheld LCR analyser that can measure the value of your passive component (inductor, capacitor or resistor) and also measure the detailed impedance in a number of modes. The LCR45 offers enhanced measurement resolution (better than 0.1uH!) whilst also giving you continuous fluid measurements. Additionally, the test frequencies of DC, 1kHz, 15kHz and 200kHz can be set to automatic or manual modes. Supplied with removable gold plated hook probes, battery and user guide. Compatible with standard 2mm test connectors. Not designed for in-circuit use.

Key Features

  • Automatic or manual component type selection: Inductor, Capacitor or Resistor.
  • Automatic or manual test frequency selection: DC, 1kHz, 15kHz and 200kHz.

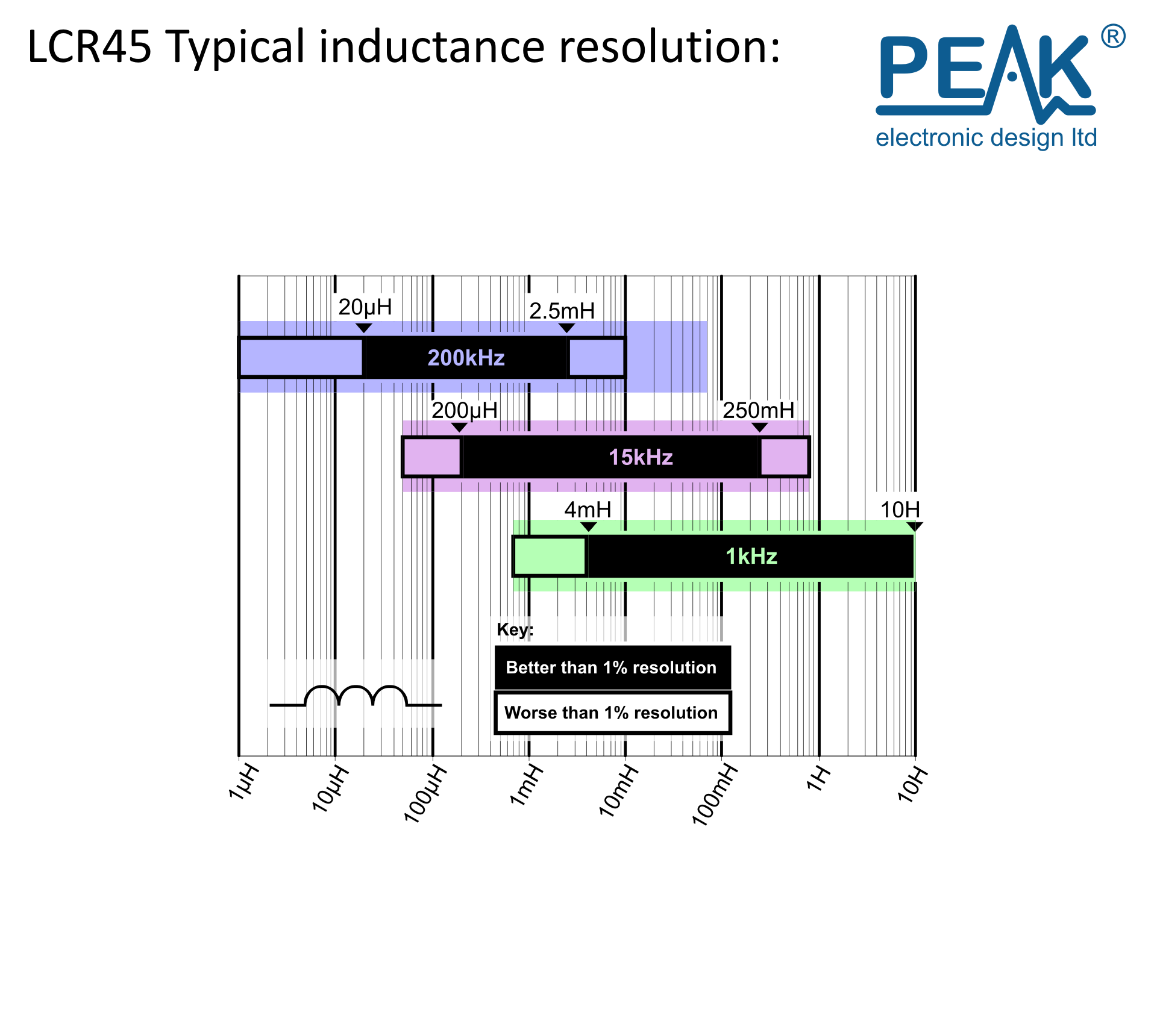

  • Inductance from 0.1uH to 10H.

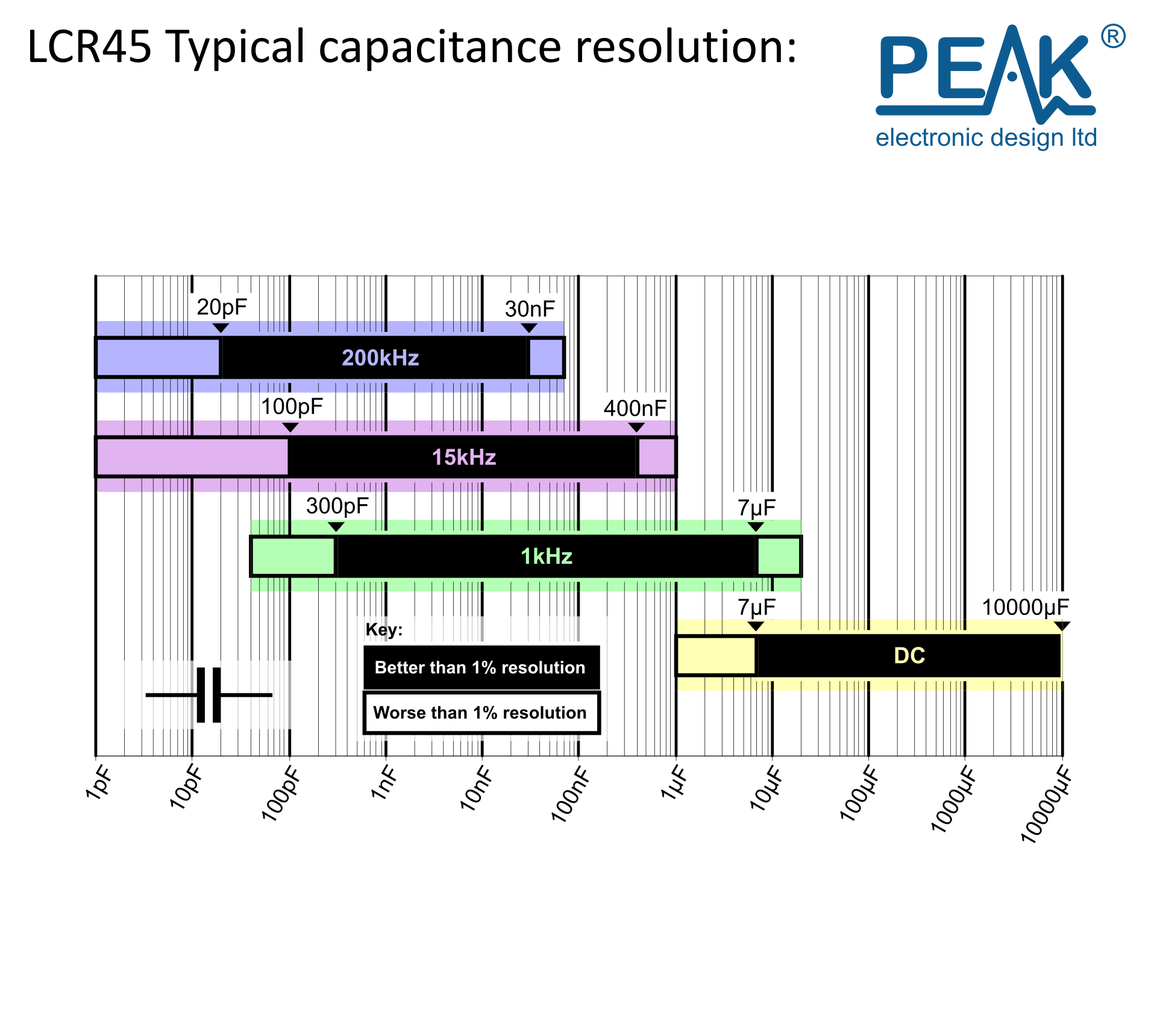

  • Capacitance from 0.1pF to 10,000uF.
  • Resistance from 0.1Ohm to 2MOhm.
  • Inductance measurement also shows DC winding resistance.

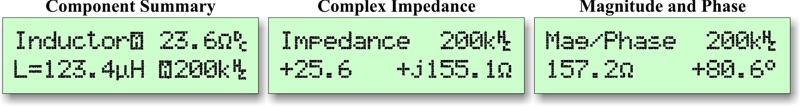

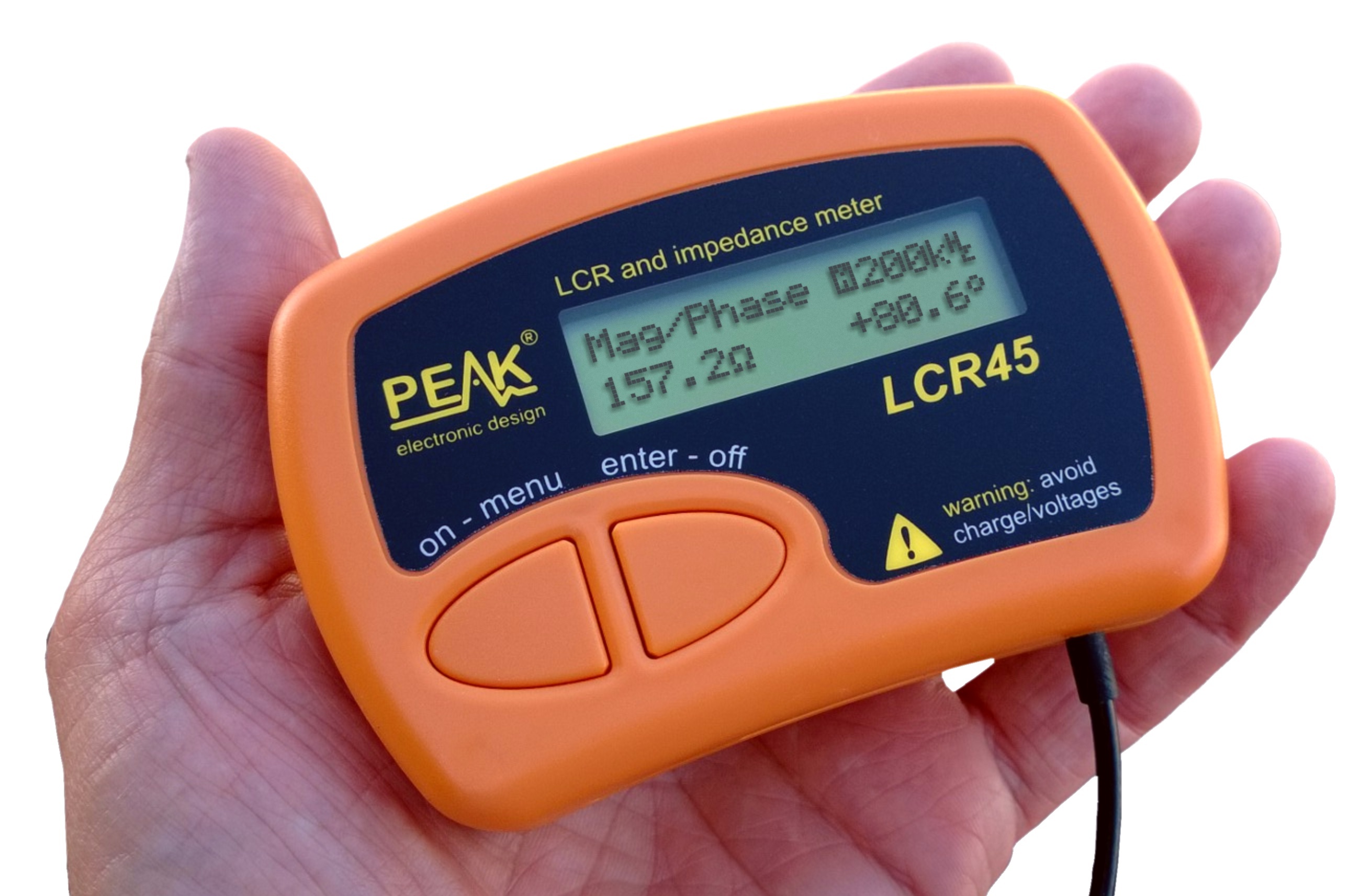

  • Display of "Component type and values", "Complex Impedance", "Magnitude/Phase" and "Admittance".
  • Test frequency displayed for all measurements.
  • Typical accuracy of 1.5% for inductors and capacitors (see spec table for details).
  • Typical accuracy of 1% for resistors.
  • Test lead complete with gold plated 2mm plugs and sockets.
  • Supplied with removable gold plated hook probes.

Specification Summary at 20°C (68°F) unless otherwise specified.

Parameter

Min

Typ

Max

Note

Resistance

range

0Ω



2MΩ



resolution

0.1Ω

0.2Ω





accuracy

Typically ±1.0% ±0.6Ω

1,2,6

Capacitance

range

0pF



10000µF



resolution

0.1pF

0.2pF





accuracy

 Typically ±1.5% ±0.6pF

1,2,5

Inductance

range

0µH



10H



resolution

0.1µH

0.2µH





accuracy

 Typically ±1.5% ±0.6µH

1,2,4

Passive Component Impedance

Re & Im

Typically ±1.5% ±10 LSD

4,5,6

Magnitude

Typically ±1.5% ±10 LSD

4,5,6

Phase

Typically ±5°

4,5,6

Measurement Sample Rate

0.5Hz

1.5Hz

2Hz



Peak test voltage (across O/C)

-1.05V



+1.05V



Peak test current (thru S/C)

-3.25mA



+3.25mA



Test frequency accuracy

1kHz

Typically ±0.5%



14.9254kHz

7

200kHz



Sine purity

Typically -60dB 3rd harmonic



Operating temperature range

10°C



40°C

3

Battery operating voltage

8.5V



13V



Notes for table above:
1. Within 12 months of factory calibration. Please contact us if you require a full re-calibration and/or certification of traceable calibration.
2. Specified at temperatures between 15°C and 30°C.
3. Subject to acceptable LCD visibility.
4. For inductances between 100µH and 100mH in fully auto mode.
5. For capacitances between 200pF and 500nF in fully auto mode.
6. For resistances between 10Ω and 1MΩ in fully auto mode.
7. For clarity, the 14.9254kHz test frequency is shown as 15kHz.

Photography (click to enlarge)

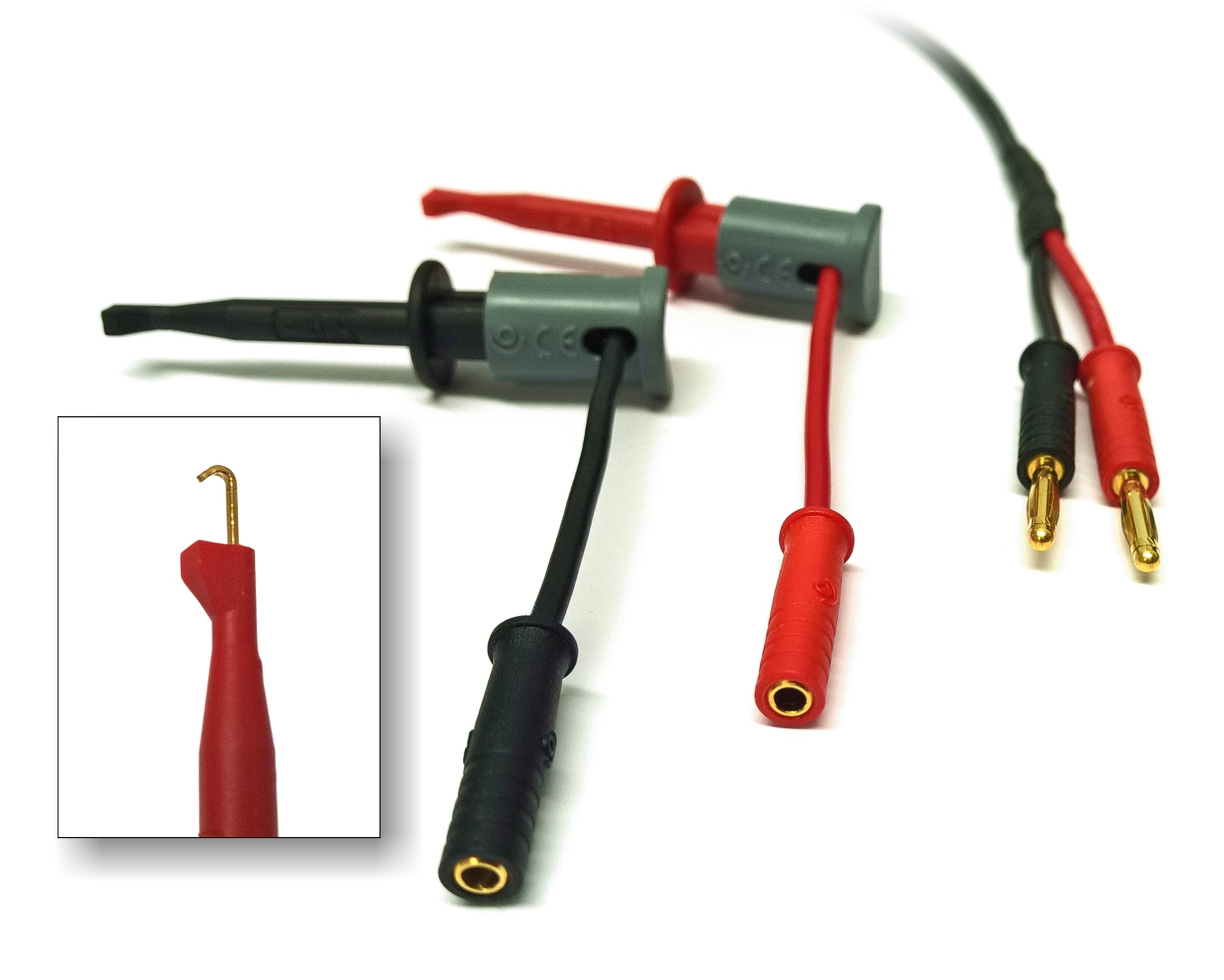

Supplied with gold plated removable hook probes

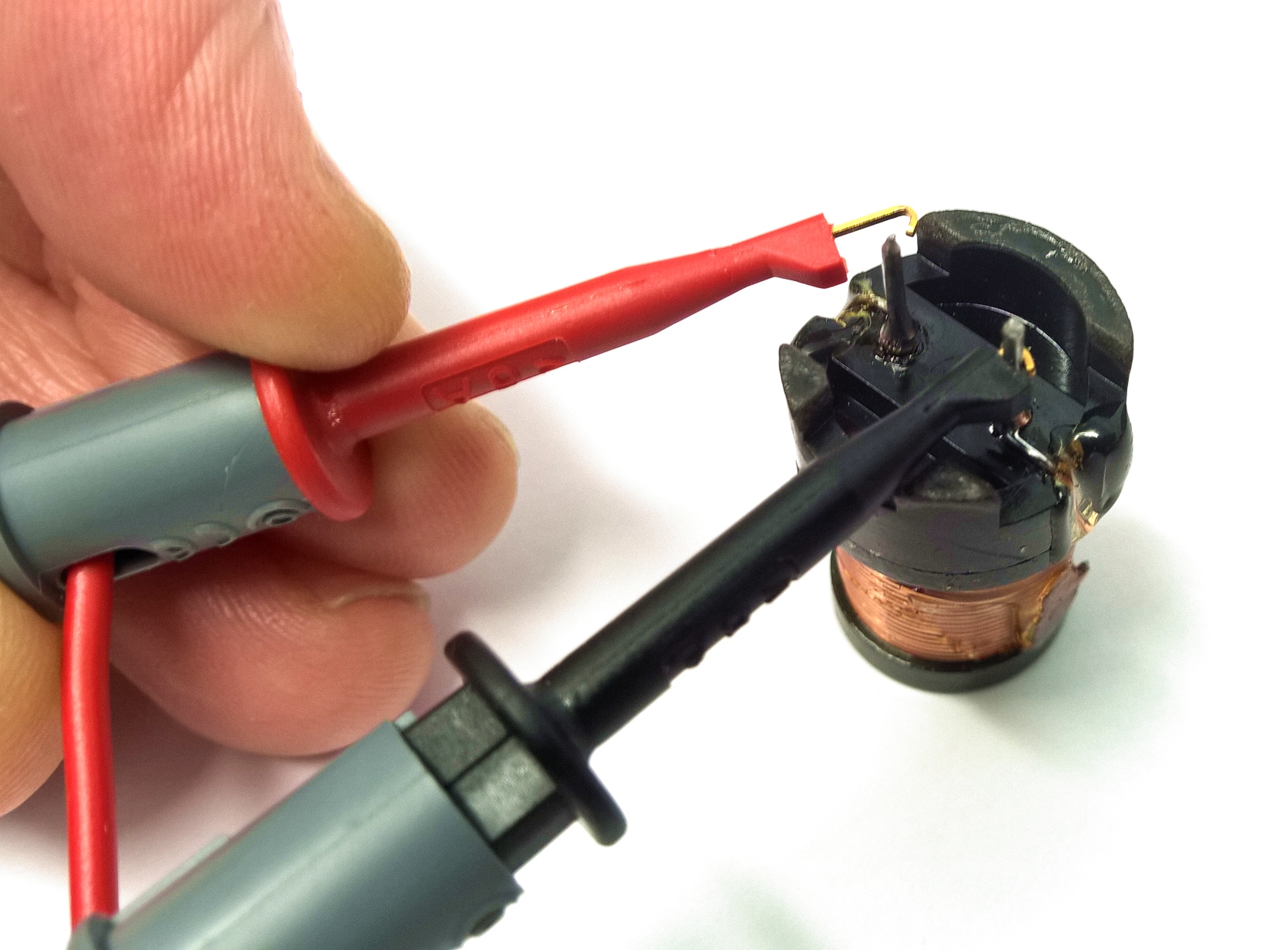

Probe being applied to an inductor







Other Downloads lcr45-user-guide-en.pdf
  lcr45-user-guide-de.pdf
  lcr45-user-guide-it.pdf
  lcr45-user-guide-fr.pdf
  lcr45-datasheet-en.pdf

Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 200 x 138 x 30 mm (7.9" x 5.4" x 1.2")

Weight per product (nett) 0.098kg (3.5oz)
Weight per product (packaged inc docs) 0.161kg (5.7oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 3399 20 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS
