LCR40 Reseller Resources
Updated 15/03/2025

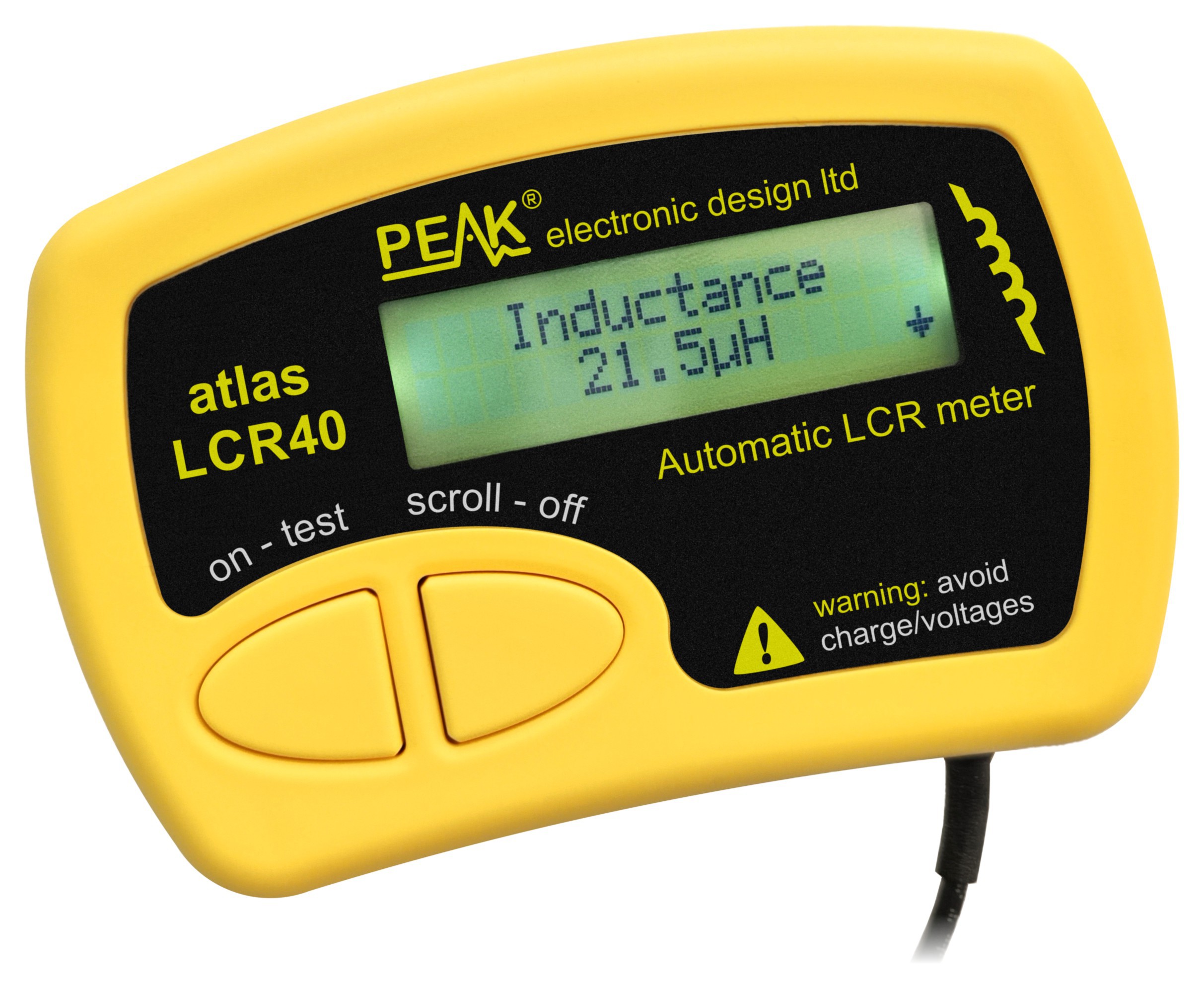

Title Atlas LCR - Passive Component Analyser (Model LCR40)

UPC 850061273031

Catalogue copy Handheld LCR meter providing measurements for inductance, capacitance and resistance. The component type is automatically detected for you, just connect and press "test". The test frequency is automatically selected to provide the best measurement resolution. Test frequencies include DC, 1kHz, 15kHz and 200kHz. Inductance from 1uH to 2H, minimum resolution of 1uH, typical accuracy of ±1.5% between 100uH and 100mH. Capacitance from 1pF to 10,000uF, minimum resolution of 1pF typical accuracy of ±1.5% between 200pF and 500nF. Resistance from 1R to 2MR, typical accuracy of ±1%. Test frequency is displayed with the measurement. Inductor DC resistance also displayed when testing inductors. Supplied with removable gold plated hook probes, battery and user guide. Compatible with standard 2mm test connectors. Not designed for in-circuit use.

Key Features

  • Automatic component type detection: Inductor, Capacitor or Resistor.
  • Automatic test frequency selection: DC, 1kHz, 15kHz and 200kHz.
  • Inductance from 1uH to 2H.
  • Capacitance from 1pF to 10,000uF.
  • Resistance from 1Ohm to 2MOhm.
  • Inductance measurement also shows DC winding resistance.
  • Test frequency displayed for all measurements.

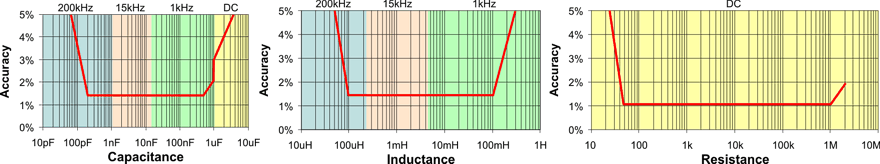

  • Typical accuracy of 1.5% for inductors and capacitors (see spec table for details).
  • Typical accuracy of 1% for resistors.
  • Single "snapshot" measurement with optional delay if you need both hands to hold the probes/component. Delay can be bypassed with an additional press of the test button.

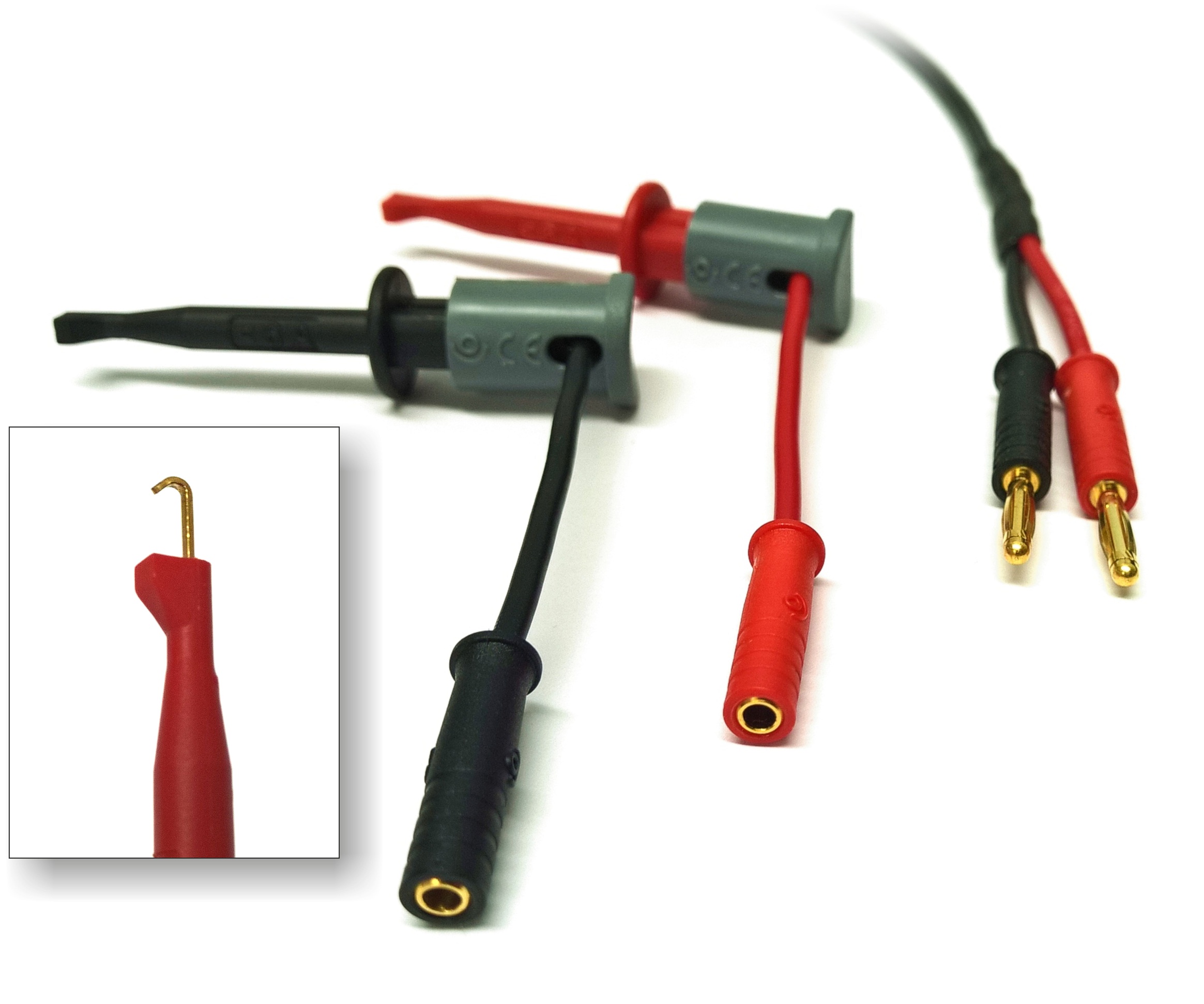

  • Coax test lead complete with gold plated 2mm plugs and sockets.
  • Supplied with removable gold plated hook probes.
  • Alphanumeric LCD with low level backlight.
  • Includes high quality alkaline battery and a spare.

Specification Summary at 20°C (68°F) unless otherwise specified.
Parameters Minimum Typical Maximum Notes
Resistance range 1R   2MR
resolution 0.3R 0.6R
accuracy Typically ±1.0% ±1.2R 1,2,6
Capacitance range 0.5pF   10,000µF
resolution 0.2pF 0.5pF
accuracy Typically ±1.5% ±1.0pF 1,2,5
Inductance range 1µH   2H
resolution 0.4µH 0.8µH
accuracy  Typically ±1.5% ±1.6µH 1,2,4
Peak test voltage (across O/C) -1.05V   +1.05V
Peak test current (thru S/C) -3.25mA   +3.25mA
Test
Frequency
Accuracy 		1kHz -1.5% ±1% +1.5%
14.925kHz -1.5% ±1% +1.5%
200kHz -1.5% ±1% +1.5%
Sine Purity Typically -60dB 3rd harmonic
Operating temperature range 15°C   35°C 3
  50°F   104°F
Battery type GP23A/MN21 12V Alkaline (supplied)
Battery operating Voltage 8.5V   13V
Battery Life Typically ~1600 operations

7

Notes for table above:
1. Within 12 months of factory calibration.
2. Specified at temperatures between 15°C and 30°C.
3. Subject to acceptable LCD visibility.
4. For inductances between 100µH and 100mH.
5. For capacitances between 200pF and 500nF.
6. For resistances between 10Ω and 1MΩ.
7. Based on <1 minute duration per operation.



Photography (click to enlarge)




Other Downloads lcr40-user-guide-en.pdf
  lcr40-user-guide-de.pdf
  lcr40-user-guide-it.pdf
  lcr40-user-guide-fr.pdf
  lcr40-datasheet-en.pdf

Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 200 x 138 x 30 mm (7.9" x 5.5" x 1.2")

Weight per product (nett) 0.098kg (3.5oz)
Weight per product (packaged inc docs) 0.161kg (5.7oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 3320 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS
