See our new product comparison chart here
Compare our component analyser products

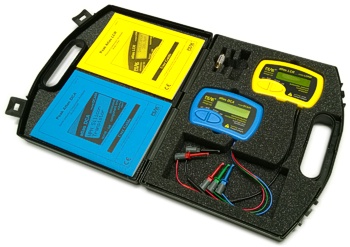

Atlas Star Pack (LCR40 & DCA55)


Atlas Star Pack (LCR40 and DCA55) - Peak part number ATPK2

Fantastic dual-instrument set, complete with custom carry case, extra spare battery and user guides.

The LCR40 (for Inductors, Capacitors and Resistors) is ideal for the hobbyist and professional alike.

The DCA55 (for most semiconductors) provides fast component identification, pinout identification and wide component support.

Please see the individual instrument pages for more detailed information on each product.

Items included: LCR40, DCA55, Extra GP23 Battery and Dual Carry Case.

This special offer deal saves you over 17 on the individual item costs.

139.95 (116.63+VAT)

DCA55 Info   LCR40 Info

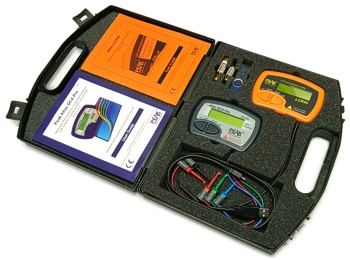

Atlas Pro Pack (LCR45 & DCA75)
  NEW!   NEW!   NEW!   NEW!




Atlas Pro Pack (LCR45 and DCA75) - Peak part number ATPK3
By popular demand, we now offer this Atlas Pro Pack, complete with extra spare batteries for each instrument, custom carry case and user guides..

This pack contains the LCR45 Passive Component Impedance Meter, great for advanced hobbyists and professionals.

It also contains the very popular DCA Pro (model DCA75), fantastic for component identification, pinout identification, detailed characteristic measurement and curve tracing on a PC. Complete with USB cable and software on a USB flash drive.

Please see the individual instrument pages for more detailed information on each product.

Items included: LCR45, DCA75, Extra GP23 Battery, Extra AAA cell and Dual Carry Case.

This special offer deal saves you over 18 on the individual item costs.

215.95 (179.96+VAT)

DCA75 Info   LCR45 Info

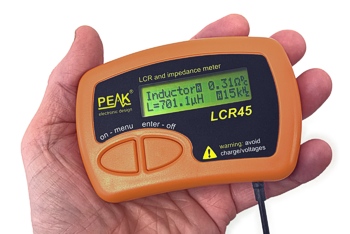

LCR and Impedance Meter
  NEW!   NEW!   NEW!   NEW!
Passive Component LCR and Impedance Meter
The new LCR45 does everything that the popular LCR40 does, but we've added some significant enhancements. The LCR45 features a new high capacity micro and high resolution ADCs. This brings you these new features:
  • Fluid measurements of L, C and R.
  • Auto and Manual component type.
  • Auto and Manual test frequency.
  • Frequencies: DC, 1kHz, 15kHz and 200kHz.
  • Display of component values, complex impedance, complex admittance and magnitude/phase.

Inductance from 0.2uH to 10H (min resolution is 0.2uH), Capacitance from 0.2pF to 10000uF (min resolution is 0.2pF) and Resistance from 0.2ohm to 2Mohm.

Supplied with 2mm plugs and sockets with hook probes, user guide and GP23 Alkaline battery.

99.95 (83.29+VAT)

Click here for product information

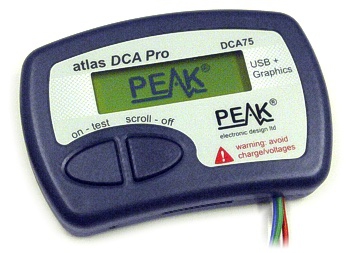

Atlas DCA Pro - Semiconductor Analyser
  DCA Pro - Advanced Semiconductor Analyser - Model DCA75

Featuring USB and a graphics display, this new instrument represents a major advance in handheld semiconductor analysis. Connect your component any way round to see the detailed component schematic on the LCD as well as pinout and comprehensive measurements. Supports IGBTs, Voltage Regulators, MOSFETs, JFETs (including SiC types), transistors, diodes, LEDs, Triacs (up to 10mA), thyristors (up to 10mA) and lots more. Measures gain, transconductance, pinch-off and more.
Includes PC software on a USB Flash Drive to enable detailed component analysis and low current curve tracing functions.
Supplied with USB Flash Drive, USB cable, user guide, fitted premium probes and AAA Alkaline battery.

115.95 (96.62+VAT)

Click here for product information
Atlas LCR - Passive Component Analyser
  With 2mm plug and socket probes
Atlas LCR - Passive Component Analyser - Model LCR40
The Atlas LCR automatically identifies and analyses almost any passive component (Inductor, Capacitor or Resistor). It measures it's parameters using automatically selected test frequencies (DC, 1kHz, 15kHz and 200kHz).

Inductance from 1uH to 10H (min resolution is 1uH), Capacitance from 1pF to 10000uF (min resolution is 1pF) and Resistance from 1ohm to 2Mohm.

Supplied with 2mm plugs and sockets with hook probes, user guide and GP23 Alkaline battery.

89.95 (74.96+VAT)

Click here for product information

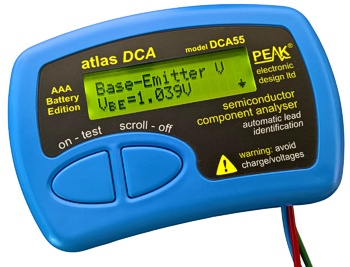

Atlas DCA - Semiconductor Analyser
  Atlas DCA - Semiconductor Analyser - Model DCA55

Intelligent and flexible semiconductor analyser. Supports transistors MOSFETs, JFETs (gate pin only can be identified), diodes, LEDs and lots more. Automatically identifies type of component, pinout and other important parameters.
Now features transistor leakage measurement and Germanium/Silicon identification.
Supplied with user guide, fitted premium probes and GP23 Alkaline battery.

49.95 (41.63+VAT)

Click here for product information

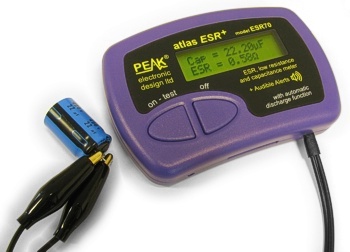

Atlas ESR Plus (ESR70) - Capacitor Analyser
  The new Peak Atlas ESR PLUS - With audible alerts - Model ESR70

With Audible Alerts and 40 Ohms Range

Now features automatic component detection to enable hands-free operation from component to component. Supplied with new 2mm plugs and sockets, removable gold croc clips and battery.

Analyse any type of capacitor from 1uF to 22000uF. Motor capacitors, smoothing capacitors, any dielectric type.

The Atlas ESR Plus provides all the functions of the popular ESR60 unit (pictured right) but with some exciting new features. In particular the ESR70 introduces audible alerts (for various ESR levels) and a new improved measurement range (up to 40 ohms instead of 20 ohms). Measurements are made at the industry standard frequency of 100kHz. Probes are now removable, allowing 2mm compatible probes to be fitted.


93.95 (78.29+VAT)

Click here for product information
Atlas ESR (ESR60) - Capacitor Analyser

Atlas ESR - Equivalent Series Resistance Meter and Capacitor Analyser - Model ESR60

Now features automatic component detection to enable hands-free operation from component to component. Supplied with new 2mm plugs and sockets, removable gold croc clips and battery.

Analyse any type of capacitor from 1uF to 22000uF. Motor capacitors, smoothing capacitors, any dielectric type.

The Atlas ESR provides instant measurement of a capacitor's ESR and it's capacitance value. Using the supplied gold plated probes (removable), the Atlas ESR can measure ESR down to a resolution of 0.01 ohms, up to 20 ohms. It can even measure ESR for capacitors that are in-circuit. Measurements are made at the industry standard frequency of 100kHz. Probes are now removable, allowing 2mm compatible probes to be fitted.


81.95 (68.29+VAT)

Click here for product information

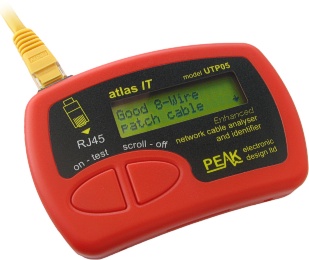

Atlas IT - Network Cable Analyser

Atlas IT - Network Cable Analyser - Model UTP05

Comprehensive CAT 5/5e/6 network cable analyser. Easy to use and very fast. Automatically identifies cable type (Straight through, cross-over, token ring etc) and verifies all the connections. Faults are clearly displayed and explained on screen. The Atlas IT will even instruct you on making up standard and special cables, complete with wire colours.
Supplied with user guide, GP23 Alkaline battery, 2 non-ID terminators, 2 patch cables and a premium carry case.

77.95 (64.96 +VAT)

Click here for product information

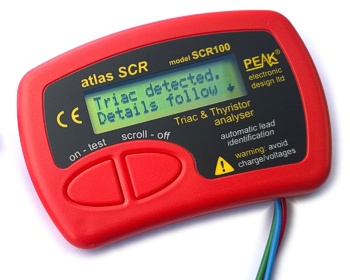

Atlas SCR - Thyristor and Triac Analyser
  Atlas SCR- Thyristor and Triac Analyser - Model SCR100
Thyristor and Triacs need special test conditions to analyse effectively - that's where the new Atlas SCR comes in.
The SCR100 can apply gate test currents from 100A up to 90mA (with test load currents of up to 100mA) so it's not limited to sensitive parts.
It will automatically identify the type of part (Thyristor or Triac), identify all three leads and also categorise the gate sensitivity.

This new version takes a standard Alkaline AAA battery.

Supplied with user guide, fitted premium probes and AAA Alkaline battery.


87.95 (73.29+VAT)

Click here for product information
UK shipping is 3 for the whole order. Airmail outside UK charged by total order weight and is calculated at checkout before you confirm your acceptance.
Payments are made in UK Pounds and will be converted to your local currency by your credit card provider, we have no control over the exchange rate used.
If you prefer not to order online then don't hesitate to call us on +44 (0)1298 70012 or click here to find your nearest distributor.
If you're outside the UK then our overseas distributors can offer you competitive pricing and much faster delivery.

Product colours may vary
